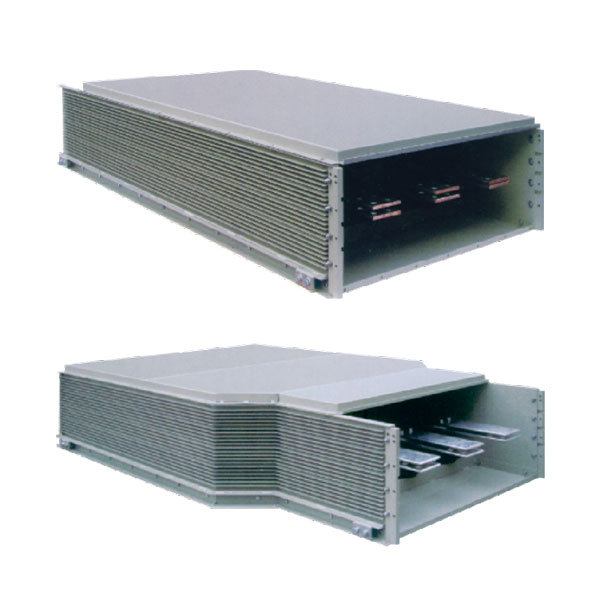

RTGM High-Voltage Enclosed Busway

RTGM High-Voltage Enclosed Busway / Bus Duct System

RTGM High-Voltage Enclosed Busway is a prefabricated bus duct system designed for high-voltage power transmission and distribution applications. It is suitable for AC 50/60 Hz systems and can be configured according to different voltage classes, current ratings, routing conditions, and installation environments.

This high-voltage enclosed busway uses a robust metal enclosure and a structured conductor arrangement to support reliable power distribution in industrial and utility-related projects. It is commonly considered for connections between major electrical equipment such as transformers, generators, and distribution assemblies, especially where mechanical strength, insulation clearance, and installation reliability are important.

ZHERUTONG provides this product as part of its busway and bus duct product range for industrial power distribution projects.

Key Features of RTGM High Power Enclosed Busway

Robust enclosure structure

The enclosure is designed to provide mechanical strength and structural stability for the assembled busway system. The side structure uses radiator-type aluminum magnesium alloy profiles, while the upper and lower sealing plates are formed with coated metal plates to support the overall enclosure strength.

Short-circuit withstand performance

A high-voltage bus duct system must maintain structural integrity under electrical stress. The RTGM design is presented with a reinforced enclosure structure and a practical conductor arrangement to support short-circuit withstand performance in demanding operating conditions.

Grounding through enclosure

The enclosure can also contribute to grounding performance in the busway system design. This approach helps integrate electrical safety and structural design in one enclosed busbar trunking system.

Expansion joint and movement compensation

For long straight runs or locations affected by structural movement, the system can be configured with expansion joints. This helps accommodate thermal expansion and contraction, as well as certain installation deviations caused by building conditions.

Vibration isolation considerations

Where the busway is connected to equipment such as transformers, generators, or distribution cabinets, vibration control becomes important.

Condensation control and drainage design

For projects exposed to temperature differences or humid conditions, condensation management is an important design consideration. The use of heating elements, collection channels, and drainage measures intended to reduce moisture accumulation inside the trunking body.

Typical Applications

RTGM high-voltage enclosed busway can be considered for applications such as:

Transformer-to-switchgear or transformer-to-distribution connections

Generator connection sections

Industrial power distribution systems

Utility-related and heavy-duty electrical distribution projects

Indoor or typical outdoor installation environments where enclosure protection and structural strength are required

Project selection should be based on voltage level, current capacity, routing layout, installation position, environmental conditions, and maintenance requirements.

Insulation and Electrical Configuration

Safe clearance distance (mm)

Technical Parameters

The RTGM high-voltage enclosed busway can be configured for the following operating conditions:

Rated current for operation: 200A, 400A, 630A, 800A, 1000A, 1200A, 1500A, 2000A, 2500A, 3000A, 3500A, 4000A, 5000A, 6300A

Operating frequency: 50/60 Hz

System type: Three-phase three-wire

Insulation level reference

Allowable temperature and temperature rise (ambient temperature 40°C)

External dimensions can be determined according to actual project requirements.

Material and Service-Life Considerations

The following design directions for long-term operation:

Aluminum magnesium alloy enclosure materials for corrosion resistance

Imported insulation materials for electrical insulation and rigidity

Silver-plated conductor surface to support temperature-rise performance and surface stability

Heat dissipation design intended to keep temperature rise within the designed range

These factors are important in enclosed busway systems used in industrial operating environments.

Installation and Project Configuration

A high power bus duct system should not be selected only by current rating. Proper selection also depends on:

Voltage class

Installation direction and routing

Straight run length

Need for bends and expansion joints

Equipment interfaces such as transformer or generator connections

Indoor or outdoor installation conditions

Inspection and maintenance access requirements

Special components can be configured according to project needs, including angle sections such as 30°, 45°, 90°, and 135°, in horizontal or vertical layouts.

Why Choose ZHERUTONG for High-Voltage Busway Projects

ZHERUTONG offers busway and bus duct products for industrial power distribution applications. For high-voltage enclosed busway projects, buyers typically need more than a product picture or a generic catalog description. They need a configuration that matches the actual voltage level, current requirement, routing condition, and installation environment.

ZHERUTONG can be contacted for:

Product and application discussion

Technical communication based on project conditions

Configuration review for voltage and current requirements

Routing discussion for straight sections, bends, and expansion arrangements

Quotation support based on project information

FAQ

What is a busway in electrical?

In electrical systems, a busway is a prefabricated power distribution system made up of conductors enclosed in a protective housing. It is used to transfer electrical power between major pieces of equipment and is often selected as an alternative to cable-and-conduit distribution in suitable applications.

What is a high voltage bus bar?

A high voltage bus bar is a conductor used to carry electrical current in high-voltage systems. In an enclosed busway or bus duct system, the bus bars are integrated into a protective enclosure together with insulation and structural components to support safe and reliable power distribution.

What is the difference between busway and bus duct?

In many industrial and commercial contexts, the two terms are used interchangeably. In practice, both usually refer to enclosed conductor systems used for electrical power distribution. Buyers often use “bus duct” in project and procurement language, while “busway” is also widely used in technical and product descriptions.

Where is high-voltage enclosed busway used?

High-voltage enclosed busway is commonly used in power distribution applications involving major electrical equipment such as transformers, generators, switchgear, and industrial distribution systems where structured routing, enclosure protection, and mechanical strength are required.

What factors should be considered when selecting a bus duct system?

Selection should normally consider voltage class, rated current, insulation clearance, short-circuit performance, routing layout, environmental conditions, expansion requirements, vibration conditions, and maintenance access.

Request a Quote

If you are evaluating a high-voltage busway, high power bus duct, or bus duct system for an industrial power distribution project, contact ZHERUTONG with your voltage level, current requirement, routing layout, and installation conditions.

A clearer project input helps improve technical communication and quotation accuracy.
