Smart Busway

The Smart Busway from ZHERUTONG is an intelligent power distribution busway system built on traditional busway technology. It integrates sensors, communication modules and software systems to combine electricity transmission with data collection, real-time monitoring and intelligent power management.

As a smart busway manufacturer and supplier, ZHERUTONG provides intelligent busway systems for B2B power distribution projects that require safer operation, easier maintenance, energy monitoring and flexible system expansion. The system is suitable for data centers, industrial facilities, commercial buildings and other electrical distribution projects where real-time visibility and centralized management are required.

Compared with conventional busway systems, the Smart Busway adds monitoring and communication functions to help operators track electrical parameters, temperature conditions, load status, energy consumption and tap-off box locations. This makes it a suitable solution for data center smart busway systems, intelligent power distribution and modern busbar trunking projects.

Key Features & Advantages

Efficient and Energy-Saving

The Smart Busway uses optimized conductor design and intelligent monitoring functions to support efficient power distribution. By tracking load conditions and energy consumption, the system helps project operators identify abnormal usage, reduce energy waste and improve power distribution efficiency.

Safe and Reliable Operation

The intelligent busway monitoring system can track key parameters such as current, voltage, temperature, power consumption and ground fault status. Real-time alerts help operators detect abnormal conditions early, such as overloads, overheating or poor contact at connection points.

Efficient Operation and Maintenance

Through touchscreens, computers, mobile devices or cloud platforms, operators can monitor the busway system remotely. This improves inspection efficiency, reduces manual checking work and supports faster troubleshooting for power distribution systems.

Flexible Expansion

The modular design and plug-and-play tap-off box configuration support convenient capacity expansion. When new equipment or cabinets are added, the power distribution system can be adjusted more easily without large-scale rewiring.

Intelligent Power Distribution Management

The Smart Busway combines power transmission with digital monitoring, making it suitable for intelligent power distribution projects that require real-time data, alarm management, energy analysis and asset tracking.

Real-Time Busway Monitoring

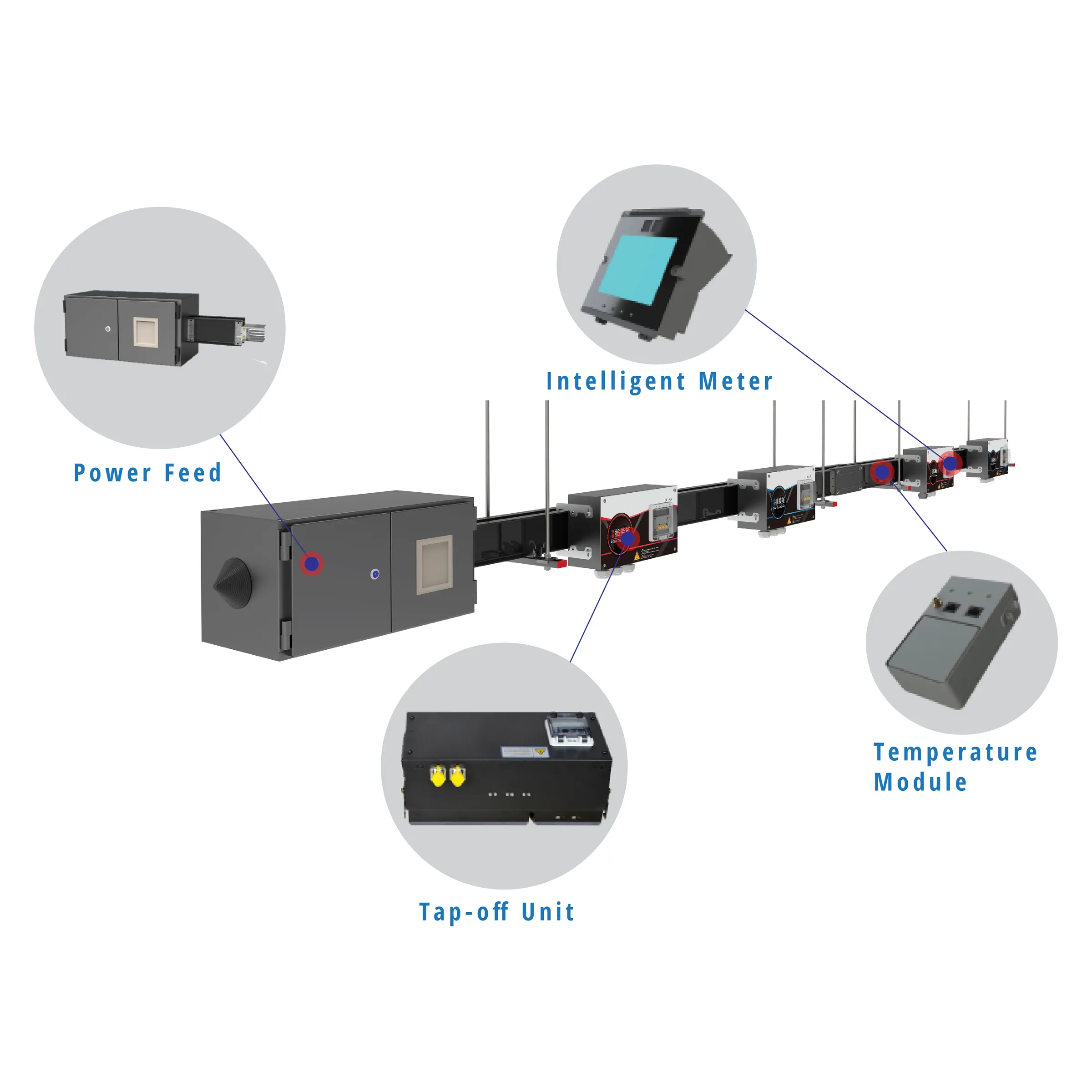

The Smart Busway system supports real-time monitoring of key electrical and operating parameters across the busway network.

Electrical Parameter Monitoring

The system can monitor current, voltage, power, energy consumption, power factor and frequency for each busway section. These data points help operators understand load conditions and power usage in real time.

Temperature Monitoring

Temperature sensors can be installed at critical nodes such as tap-off boxes and connection points. They help track conductor and joint temperatures to reduce overheating risks caused by overloads, loose connections or poor contact.

Ground Fault Monitoring

The system can detect residual current and ground fault conditions, supporting safer operation and reducing potential electrical risks.

Tap-Off Box Status Monitoring

The system can track the plug-in status and physical location of each tap-off box or power distribution unit. This is especially useful for data center power distribution and cabinet-level power management.

Alerts & Alarm Management

The Smart Busway monitoring system supports customizable alarm thresholds for key operating parameters. When overload, temperature abnormality, ground fault or other abnormal conditions occur, the system can issue alerts through local audible and visual alarms, mobile applications, SMS notifications or cloud platforms.

This alarm management function supports early fault detection and predictive maintenance, helping operators identify problems before they develop into larger electrical failures.

Data Analysis & Energy Management

The backend system or cloud platform can collect operating data from the smart busway system for analysis and reporting.

It can generate electricity consumption reports, identify peak usage periods and detect abnormal power consumption patterns. These insights help facility managers optimize energy strategies, improve load distribution and plan future capacity expansion.

For B2B projects with high power density, such as data centers and industrial facilities, this function helps improve transparency in power usage and supports long-term energy management.

Remote Control & Maintenance

The Smart Busway supports remote monitoring through computers, mobile devices or cloud-based platforms. Operators can check operating status without being physically present on site.

When integrated with smart circuit breakers, the system may support remote open/close operations for selected circuits according to project configuration. This helps improve maintenance efficiency and supports centralized power distribution management.

Asset & Location Management for Data Centers

For data center applications, each cabinet tap-off box can have unique identification. The system can track which cabinet is connected to which tap-off box and monitor its power consumption.

This function helps simplify cabinet moves, additions and changes. It also reduces cabling confusion and improves asset management efficiency in data center power distribution projects.

The Smart Busway is suitable for data center smart busway systems, cabinet-level power monitoring, tap-off box monitoring and intelligent power distribution management.

Typical Applications

The Smart Busway is designed for power distribution projects that require real-time monitoring, centralized management and flexible capacity expansion.

Typical applications include:

• Data center power distribution

• Cabinet-level power monitoring

• Industrial facility power distribution

• Commercial building electrical systems

• Intelligent power distribution projects

• Busway systems requiring energy monitoring

• Projects requiring tap-off box location and load tracking

• Facilities requiring remote busway monitoring and maintenance

FAQ

Q: What is a Smart Busway?

A: A Smart Busway is an intelligent busway system that combines power transmission with data collection, real-time monitoring and power management. It integrates sensors, communication modules and software systems to support safer and more efficient power distribution.

Q: What parameters can the Smart Busway monitor?

A: The system can monitor electrical parameters such as current, voltage, power, energy consumption, power factor and frequency. It can also monitor temperature, ground fault status, tap-off box location and plug-in status according to project configuration.

Q: Is the Smart Busway suitable for data centers?

A: Yes. The Smart Busway is suitable for data center power distribution, cabinet-level power monitoring, tap-off box tracking, energy management and remote operation and maintenance.

Q: How does the system help improve safety?

A: The intelligent monitoring system can detect abnormal conditions such as overloads, overheating, ground faults and poor contact at connection points. Alerts can be sent through local alarms, mobile applications, SMS notifications or cloud platforms.

Q: Can the Smart Busway support energy management?

A: Yes. The system can collect and analyze power consumption data, generate energy reports, identify peak usage periods and support load optimization for power distribution projects.

Q: Does the Smart Busway support remote monitoring?

A: Yes. Operators can monitor the system through computers, mobile devices or cloud platforms. Remote control functions may also be available when integrated with smart circuit breakers.

Q: Can the system track tap-off boxes?

A: Yes. Each tap-off box or power distribution unit can be identified and tracked. This helps manage cabinet connections, power consumption and location status, especially in data center applications.

Q: What information is needed for a project quotation?

A: Please provide the project layout, application scenario, power distribution requirements, monitoring requirements, tap-off box configuration, communication method and any special operation or maintenance requirements.
