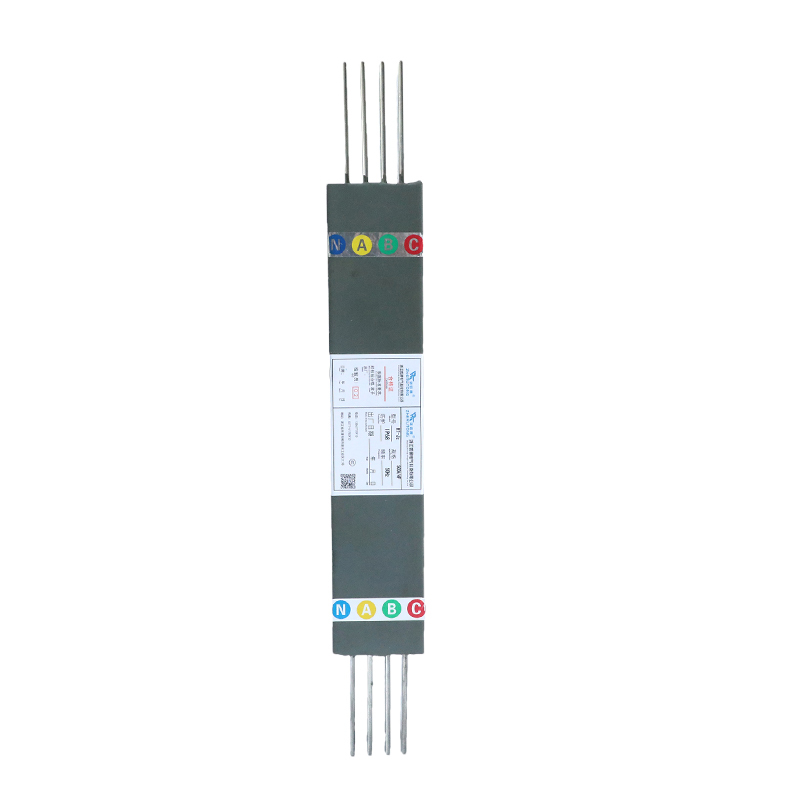

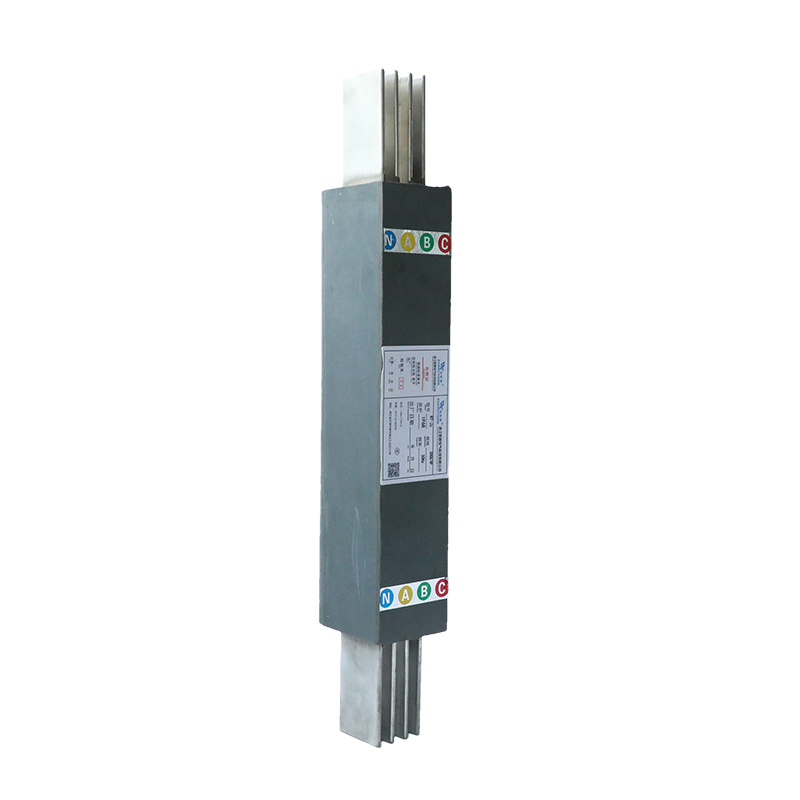

Name: RT-JZ Cast Resin Busway
Brand: ZHERUTONG
Availability: InStock
Rating: 5 (1 reviews)

Description

ZHERUTONG is a cast resin busway manufacturer and cast busway supplier focused on reliable busbar trunking solutions for demanding installation conditions. RT-JZ Cast Resin Busway uses high-performance insulation resin to encapsulate and seal the conductor, forming a compact busway system suitable for environments where moisture, dust, corrosion, and water exposure can affect conventional bus duct systems.

As a cast resin bus duct manufacturer, we offer this system for low-voltage power distribution projects that require strong sealing performance, reduced maintenance, and dependable operation. Custom cast resin busway and custom cast resin bus duct solutions can be discussed based on current rating, installation direction, and site conditions.

RT-JZ Cast Busway uses high-performance insulation resin to encapsulate and seal the conductor system, forming a compact busbar trunking solution for projects that require stable power distribution in harsh conditions. Compared with conventional bus duct structures, cast resin busway is better suited to environments exposed to moisture, dust, corrosion, and outdoor or semi-outdoor installation conditions.

The system is designed for low-voltage electrical distribution and is available for a wide range of project requirements. It is suitable for installations where waterproof protection, long-term durability, and reduced maintenance are important considerations. Custom cast resin busway configurations can be discussed based on current rating, installation direction, and site conditions.

Why Choose RT-JZ Cast Resin Busway

As a cast resin busway supplier, ZHERUTONG provides RT-JZ systems for applications that require high protection and stable electrical performance.

IP68 Protection
The conductor is sealed with insulation resin to help protect the system from water, dust, and other environmental exposure.

Fire-Resistant Performance
The resin-insulated structure is designed for applications that require safer and more reliable circuit operation under fire conditions.

Corrosion Resistance
RT-JZ Cast Resin Busway is suitable for humid, polluted, and corrosive environments where conventional bus duct systems may face higher protection challenges.

Flexible Project Application
As a cast busway manufacturer, we support different installation layouts and project-based configurations for industrial and infrastructure applications.

Reliable Structure and Stable Operation

The RT-JZ system combines a compact structure with dependable electrical performance. It is designed for low-voltage power transmission and distribution with strong sealing performance, stable operation, and reduced maintenance requirements.

Scope of Application

ZHERUTONG supplies RT-JZ systems for projects that require durable and high-protection power distribution. Typical applications include ships, ports, basements, trenches, high-rise building shafts, industrial plants, and other environments exposed to humidity, water, or corrosive conditions.

Structural Characteristics

High-performance insulation resin encapsulation

IP68 protection for busway components and connection components

Waterproof, fire-resistant, corrosion-resistant, and explosion-proof design orientation

Suitable for horizontal, vertical, and elevated installation

Designed for harsh indoor and outdoor environments

Performance Parameters

Casting busbar trunking is a new type of non-metallic shell busbar trunking that uses high-performance insulation resin to directly pour and seal the busbar, with a protection level of IP68 and four protection functions including waterproof, fireproof, anti-corrosion, and explosion-proof.

Execution standards	IEC, DIN, EN, GB7251.1.2
Rated insulation voltage	AC/DC1000
Rated working voltage	AC1000
Rated frequency	50~60HZ
Rated current	630A~6300A
Protection level	Bus components	IP68
Protection level	Connecting components/plug-in units	IP68
Shell	Copper or aluminum bars
Material Science	Epoxy resin
Installation method	Horizontal, vertical, and elevated installation

Work Environment

RT-JZ Cast Resin Busway is designed for demanding service conditions, including:

Ambient temperature: -20°C to 40°C

Relative humidity up to 95% at 20°C

Installation altitude not exceeding 1000 m

Indoor or outdoor environments with high humidity or exposure risks

Custom Cast Resin Busway for Project Requirements

As a cast resin busway supplier, ZHERUTONG supports project-based selection according to current rating, installation layout, and environmental conditions. Custom cast resin bus duct configurations can be discussed for different routing directions, mounting methods, and application requirements.

Technical datasheets, product documentation, and communication for project configuration are available upon request.

FAQ

What is a cast resin busway?

A cast resin busway is a busbar trunking system in which the conductors are encapsulated with insulation resin. This structure helps improve protection against water, dust, corrosion, and other environmental factors, making it suitable for demanding power distribution applications.

Cast resin busway system installation

Cast resin busway systems can be installed horizontally, vertically, or in elevated layouts according to project requirements. Proper installation should be confirmed based on current rating, route design, support spacing, environmental exposure, and overall system configuration. Technical documentation and installation guidance should be reviewed before project deployment.

Need a custom cast resin busway for your project?
ZHERUTONG is a cast resin busway manufacturer and supplier supporting project-based selection and customization. As a custom cast resin busway supplier, we can discuss suitable configurations according to current rating, installation layout, and environmental requirements.
Contact ZHERUTONG for technical data, product documentation, and quotation support for your installation environment and current rating requirements.
