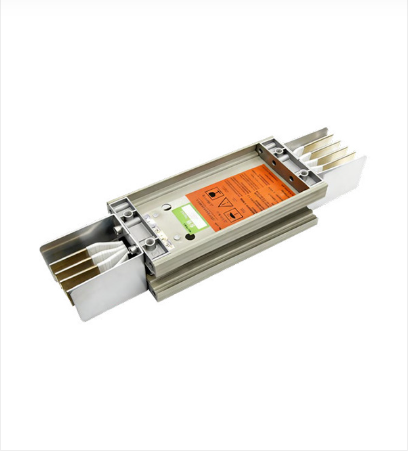

The RT-CMC Compact Busway System from ZHERUTONG is designed for high-current power distribution in commercial, industrial, and infrastructure projects. With a compact sandwich structure, closely arranged conductors, and low-impedance design, the system helps improve power distribution efficiency while reducing installation space in suitable applications.
As a compact busway system manufacturer, ZHERUTONG provides RT-CMC systems for transformer-to-panel connections, vertical shaft distribution, feeder routes, and other high-current power transmission requirements. The product range covers different current ratings, conductor options, protection levels, and functional units to support project-specific configuration.
A compact busway system is a prefabricated electrical distribution system used to transmit and distribute high-current power in a more organized and modular way. It is commonly used as an alternative to conventional cable-based distribution in projects that require compact installation, stable power transmission, and flexible system configuration.
In electrical applications, busway is also referred to as bus duct or busbar trunking in many markets. For this reason, search terms such as busway electrical, electrical busway, and bus duct may all be related to compact busway systems, although the product type should always be matched to the actual project requirement.
The RT-CMC series is developed for projects that require:
High-current power distribution, Compact installation space, Low impedance and low voltage drop, Modular routing and system expansion, Reliable performance in commercial and industrial environments, Compared with conventional cable distribution in suitable projects, a compact busway system can help simplify the power distribution route, support modular installation, and improve space efficiency.
RT-CMC Series Low-Impedance Compact Busway uses a sandwich structure with closely arranged conductors for overall heat dissipation. The compact structure occupies less space and is intended for safe and reliable power distribution in high-current applications.
The RT-CMC compact busway system is suitable for:
Three-phase three-wire systems
Three-phase four-wire systems
Three-phase five-wire systems
Rated operating voltage up to 690V
Rated insulation voltage up to 1000V
Rated operating current from 250A to 6300A
The system can be discussed with copper or aluminum busbar options according to project requirements.
The RT-CMC Compact Busway System is suitable for applications such as: Industrial plants, Commercial buildings, High-rise buildings, Stadiums, Hospitals, Large commercial plazas, Transformer and distribution cabinet connections, Vertical shaft power distribution routes
Closely arranged conductors help create a compact power distribution structure for projects where installation space matters.
Data for both copper and aluminum busbars is provided, allowing discussion based on application and project preference.
The RT-CMC series includes straight units, plug-in straight lengths, elbows, terminal units, cable entry boxes, plug-in boxes, and related installation accessories.
The system can be discussed with different ingress protection levels, including IP54, IP65, and up to IP66 depending on application requirements.
The RT-CMC Compact Busway System mainly includes:
Transformer incoming line unit
Fire barrier
Low-voltage cabinet feeder unit
Straight unit
Direction change unit
Tap-off unit
Installation accessories
These components allow the system to support feeder distribution, branch distribution, route changes, and installation in different project conditions.
Standard straight lengths are generally 3000 mm or 4000 mm.
Plug-in sections are designed for flexible tap-off configuration. Openings may be arranged according to load and future expansion requirements.

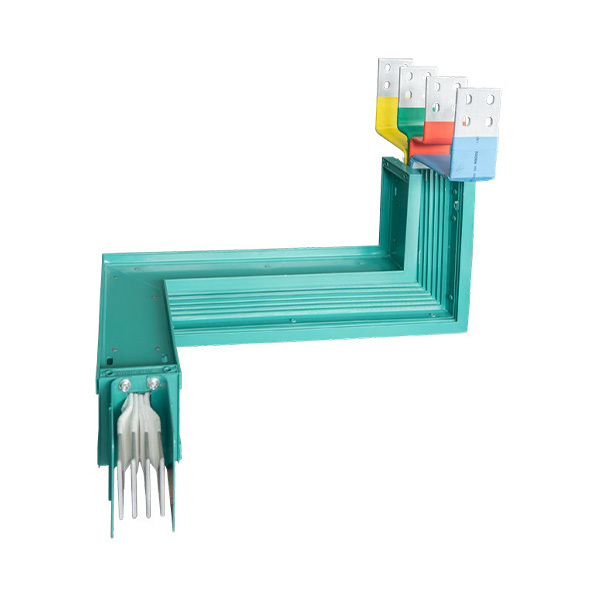

Different elbow units are used to change busway direction, avoid obstacles, and adapt to vertical or horizontal routing conditions.
Terminal units are used to close the busway route where required.
Cable entry units are used for feeding or receiving power at the busway section according to system design needs.
The plug-in box distributes electrical energy from the busway to the load and is an important branch distribution unit in practical operation.
Resistance,Reactancc,lmpedance,Power step-down
| Rated Current (A) | Resistance per Meter | Impedance per Meter | Power Step-down Meter (V) / Power Factor cosΦ | |||||
| Rcsistance meter (mΩ) | Rcsistance meter (mΩ) | Impcduncemeter (mΩ) | 0.6 | 0.7 | 0.8 | 0.9 | 1 | |
| 400 | 0.00088 | 0.00037 | 0.000118 | 0.058 | 0.062 | 0.065 | 0.067 | 0.062 |
| 630 | 0.00088 | 0.00037 | 0.000118 | 0.092 | 0.098 | 0.103 | 0.106 | 0.098 |
| 800 | 0.00064 | 0.00032 | 0.000084 | 0.090 | 0.095 | 0.099 | 0.101 | 0.091 |
| 1000 | 0.00054 | 0.00026 | 0.000075 | 0.094 | 0.099 | 0.104 | 0.106 | 0.096 |
| 1250 | 0.00039 | 0.00019 | 0.000053 | 0.086 | 0.091 | 0.095 | 0.097 | 0.087 |
| 1600 | 0.00028 | 0.00015 | 0.000037 | 0.081 | 0.085 | 0.089 | 0.090 | 0.080 |
| 2000 | 0.00022 | 0.00012 | 0.000031 | 0.081 | 0.085 | 0.088 | 0.089 | 0.078 |
| 2500 | 0.00017 | 0.00011 | 0.000025 | 0.084 | 0.087 | 0.089 | 0.088 | 0.074 |
| 3150 | 0.00015 | 0.00006 | 0.000025 | 0.075 | 0.081 | 0.086 | 0.089 | 0.084 |
| 5000 | 0.00006 | 0.00002 | 0.000015 | 0.061 | 0.068 | 0.073 | 0.075 | 0.078 |
| 6300 | 0.00006 | 0.00001 | 0.0000070 | 0.065 | 0.073 | 0.082 | 0.089 | 0.094 |
| Rated Current (A) | Resistance per Meter | Impedance per Meter | Power Step-down Meter (V) / Power Factor cosΦ | |||||
| Rcsistance meter (mΩ) | Rcsistance meter (mΩ) | Impcduncemeter (mΩ) | 0.6 | 0.7 | 0.8 | 0.9 | 1 | |
| 250 | 0.00146 | 0.00028 | 0.000171 | 0.048 | 0.053 | 0.058 | 0.062 | 0.063 |
| 400 | 0.00116 | 0.00026 | 0.000152 | 0.063 | 0.069 | 0.079 | 0.080 | 0.080 |
| 630 | 0.00093 | 0.00024 | 0.000131 | 0.082 | 0.090 | 0.097 | 0.103 | 0.101 |
| 800 | 0.00077 | 0.00021 | 0.000108 | 0.087 | 0.095 | 0.102 | 0.108 | 0.106 |
| 1000 | 0.00058 | 0.00018 | 0.000086 | 0.085 | 0.093 | 0.099 | 0.104 | 0.101 |
| 1250 | 0.00044 | 0.00015 | 0.000062 | 0.082 | 0.089 | 0.095 | 0.099 | 0.094 |
| 1600 | 0.00032 | 0.00012 | 0.000049 | 0.080 | 0.086 | 0.091 | 0.094 | 0.089 |
| 2000 | 0.00029 | 0.00011 | 0.000045 | 0.091 | 0.098 | 0.103 | 0.107 | 0.100 |
| 2500 | 0.00022 | 0.00008 | 0.000031 | 0.084 | 0.091 | 0.096 | 0.100 | 0.094 |
| 3200 | 0.00016 | 0.00005 | 0.000024 | 0.075 | 0.082 | 0.088 | 0.092 | 0.088 |
| 4000 | 0.00013 | 0.00003 | 0.000015 | 0.069 | 0.076 | 0.083 | 0.088 | 0.088 |
Straight Length:
The straight length without outlets.
The standard length is either 3000mm or 4000mm,the minimum length is 460mm.
| Current Rating Code | Current Rating (A) | High (mm) | |
| RT-CMC | RT-CMA | ||
| 02 | 250 | / | 103 |
| 04 | 400 | 103 | 113 |
| 06 | 630 | 103 | 128 |
| 08 | 800 | 113 | 143 |
| 10 | 1000 | 125 | 168 |
| 12 | 1250 | 148 | 203 |
| 16 | 1600 | 183 | 242 |
| 20 | 2000 | 223 | 293 |
| 25 | 2500 | 273 | 392 |
| 32 | 3200 | 352 | 472 |
| 40 | 4000 | 432 | 592 |
| 50 | 5000 | 532 | / |
| 63 | 6300 | 701 | / |
Note: The width is uniformly 125mm
Short Circuit Current Rating:
The RT-CMC busway provides stable and efficient power transmission, featuring exceptional short-circuit withstand capability validated by third-party CCC certification.
Copper
| Rated Current (A) | Rated Short-time Withstand Current (kA) | Rated Peak Withstand Current (kA) |
| 400/500/630/800 | 30 | 63 |
| 1000/1250 | 50 | 105 |
| 1600/2000 | 65 | 143 |
| 2500/3200 | 80 | 176 |
| 4000/5000/6300 | 100 | 220 |
Aluminum
| Rated Current (A) | Rated Short-time Withstand Current (kA) | Rated Peak Withstand Current (kA) |
| 250/400 | 15 | 30 |
| 630/800 | 30 | 63 |
| 1000/1250 | 50 | 105 |
| 1600/2000 | 65 | 143 |
| 2500/3200/4000 | 80 | 176 |
Copper Busbar
| Rated Current | A | B | C | M | Type |
| 250 | — | — | — | — | — |
| 400 | 25 | 50 | — | Φ12 | I |
| 630 | 25 | 50 | — | Φ14×20 | I |
| 800 | 25 | 50 | — | Φ14×20 | I |
| 1000 | 25 | 50 | — | Φ14×20 | II |
| 1250 | 25 | 50 | 50 | Φ14×20 | II |
| 1600 | 25 | 50 | 50 | Φ14×20 | III |
| 2000 | 25 | 50 | 50 | Φ14×20 | III |
| 2500 | 25 | 50 | 50 | Φ14×20 | IV |
| 3200 | 25 | 50 | 50 | Φ14×20 | II |
| 4000 | 25 | 50 | 50 | Φ14×20 | III |
| 5000 | 25 | 50 | 50 | Φ14×20 | IV |
| 6300 | 25 | 50 | 50 | Φ14×20 | III |
Aluminum Busbar
| Rated Current | A | B | C | M | Type |
| 250 | 25 | 50 | — | Φ14×20 | I |
| 400 | 25 | 50 | — | Φ14×20 | I |
| 630 | 25 | 50 | — | Φ14×20 | I |
| 800 | 25 | 50 | — | Φ14×20 | I |
| 1000 | 25 | 50 | — | Φ14×20 | II |
| 1250 | 25 | 50 | 50 | Φ14×20 | III |
| 1600 | 25 | 50 | 50 | Φ14×20 | III |
| 2000 | 25 | 50 | 50 | Φ14×20 | IV |
| 2500 | 25 | 50 | 50 | Φ14×20 | III |
| 3200 | 25 | 50 | 50 | Φ14×20 | III |
| 4000 | 25 | 50 | 50 | Φ14×20 | IV |
| 5000 | — | — | — | — | — |
| 6300 | — | — | — | — | — |
Cable Entry BoX
● Individual cablc entry units arc used to implement feeding or receiving power with a section of the Busbar or it is the device that used without overcurrent protection.
● The maximum current of the cable entry unit is 5000A.
● Both multi-corc and singlc-corc cablcs can be used in the cable entry boxes.As long as thecable section does not exceed 300mm2 , it can be installed directly in the cable entry box
| Rated Current (A) | Three-phase four-wire | Three-phase five-wire | ||||
| Length L (mm) | Width W (mm) | Height H (mm) | Length L (mm) | Width W (mm) | Height H (mm) | |
| 200 | — | — | — | — | — | — |
| 400 | 400 | 400 | 178 | 400 | 520 | 178 |
| 500 | 400 | 400 | 178 | 400 | 520 | 178 |
| 630 | 400 | 400 | 178 | 400 | 520 | 178 |
| 800 | 400 | 400 | 208 | 400 | 520 | 208 |
| 1000 | 400 | 400 | 223 | 400 | 520 | 223 |
| 1250 | 400 | 400 | 248 | 400 | 520 | 248 |
| 1600 | 400 | 400 | 278 | 400 | 520 | 278 |
| 2000 | 400 | 400 | 318 | 400 | 520 | 318 |
| 2500 | 400 | 400 | 368 | 400 | 520 | 368 |
| 3200 | 400 | 400 | 447 | 400 | 520 | 447 |
| 4000 | 400 | 400 | 527 | 400 | 520 | 527 |
| 5000 | 400 | 400 | 627 | 400 | 520 | 627 |
| Rated Current (A) | Three-phase four-wire | Three-phase five-wire | ||||
| Length L (mm) | Width W (mm) | Height H (mm) | Length L (mm) | Width W (mm) | Height H (mm) | |
| 200 | 400 | 400 | 198 | — | — | — |
| 400 | 400 | 400 | 208 | 400 | 520 | 198 |
| 500 | 400 | 400 | 218 | 400 | 520 | 208 |
| 630 | 400 | 400 | 223 | 400 | 520 | 218 |
| 800 | 400 | 400 | 238 | 400 | 520 | 223 |
| 1000 | 400 | 400 | 263 | 400 | 520 | 238 |
| 1250 | 400 | 400 | 298 | 400 | 520 | 263 |
| 1600 | 400 | 400 | 348 | 400 | 520 | 298 |
| 2000 | 400 | 400 | 417 | 400 | 520 | 348 |
| 2500 | 400 | 400 | 487 | 400 | 520 | 417 |
| 3200 | 400 | 400 | 587 | 400 | 520 | 487 |
| 4000 | 400 | 400 | 667 | 400 | 520 | 587 |
| 5000 | — | — | — | 400 | 520 | 667 |
| Current Rating (A) | Length Length (mm) | Width Width (mm) | Height Heigh (mm) |
| 100 | 360 | 250 | 250 |
| 160 | 400 | 250 | 250 |
| 250 | 520 | 270 | 270 |
| 400 | 650 | 310 | 310 |
| 630 | 800 | 340 | 340 |
| 800 | 1200 | 420 | 420 |
Minimum Distance Between Plug-in box Installation
| Current level for plug-in box | L (mm) |
| 100 | 150 |
| 160 | 175 |
| 250 | 195 |
| 400 | 210 |
| 630 | 230 |
| 800 | 260 |
| 1000 | 300 |
For buyers researching compact busway system installation, installation details depend on current rating, conductor type, route direction, support spacing, plug-in configuration, and project layout. Horizontal ceiling installation, Minimum distance between busbar installation,
Minimum distance between plug-in box installation, Transformer connection, Distribution cabinet connection, On-site installation arrangement,
For project discussion, it is helpful to prepare: Current rating, Voltage, Conductor preference, Installation direction, Straight length requirement, Tap-off requirement, Drawings or route layout if available
A compact busway system is a prefabricated electrical distribution system used to transmit and distribute high-current power through an enclosed and modular conductor system.
In electrical distribution, busway refers to a prefabricated power distribution system used as an alternative to traditional cable and conduit arrangements in many commercial and industrial projects.
In many markets, the two terms are used closely or interchangeably. The exact usage may depend on region, product structure, and supplier terminology.
Busbar trunking systems may include compact busway, lighting busway, feeder busway, plug-in busway, and other project-specific configurations depending on current range and application.
Compact busway can be used in industrial plants, commercial buildings, hospitals, high-rise buildings, stadiums, and other projects that require reliable high-current power distribution.
Installation depends on project layout, routing direction, support spacing, and system configuration. Straight units, elbows, plug-in sections, cable entry units, and accessories are selected according to project needs.
Project-related options such as current rating, conductor material, ingress protection, straight length, and component selection can be discussed according to application requirements.
