How to Size Busbar Connectors for High Current Distribution Panels: Complete Guide

Engineers frequently struggle with unexpected thermal tripping, mismatched cross-sectional areas, and confusing standard standard conversions when designing power distribution systems. As ZHERUTONG, a dedicated busbar trunking manufacturer, we regularly see these sizing errors lead to catastrophic panel failures, melted insulation, and costly facility downtime. We are sharing our manufacturer-level knowledge to eliminate this guesswork and provide you with actionable engineering guidelines that you can apply immediately to your next project.

To know exactly how to size busbar connectors for high current distribution panels, you must precisely calculate current density, apply strict temperature rise margins, and match the physical cross-section to specific load requirements. Relying on outdated rule-of-thumb estimates is no longer acceptable in modern electrical engineering, especially when dealing with non-linear loads.

This tutorial provides a step-by-step calculation workflow, standard compliance checklists, and mechanical joint guidelines. By following these highly specific steps, you will construct highly reliable, perfectly sized electrical busbar connectors that prevent overheating, withstand short-circuit stresses, and ensure seamless power delivery across your entire facility.

Why Does Accurate Sizing Matter?

Accurate sizing prevents catastrophic thermal failures and ensures optimal power distribution in high-load electrical panels.

Undersized electrical busbar connectors cause excessive heat generation and severe voltage drops across the distribution network. High current loads forced through inadequate cross-sectional areas increase electrical resistance exponentially. This localized heating degrades surrounding cable insulation, warps the copper structure, and eventually causes catastrophic phase-to-phase short circuits. The solution requires implementing a strict sizing protocol based on peak load calculations, harmonic distortions, and environmental conditions rather than relying solely on average load estimates.

Recently, a hyperscale data center client in Germany faced recurring thermal shutdowns in their 4000A main distribution panels. They initially used standard commercial connectors based on basic load calculations. The generic copper bars were completely overwhelmed by the non-linear loads and heavy harmonic currents generated by their thousands of server racks. Thermal imaging revealed that their connection joints were operating at a dangerous one hundred and fifteen degrees Celsius.

ZHERUTONG intervened by sending our engineering team to conduct a full thermal and electrical audit on site. We analyzed the skin effect and the specific third and fifth-order harmonic loads present in their facility. We recalculated the required cross-section using our proprietary thermal derating models and provided custom-sized busbar trunking solutions tailored to their exact enclosure dimensions. By replacing the generic single-bar setup with our engineered multi-bar configuration, we entirely eliminated the overheating issues, reduced their joint operating temperatures to a safe forty-five degrees Celsius, and reduced their overall energy loss by twelve percent.

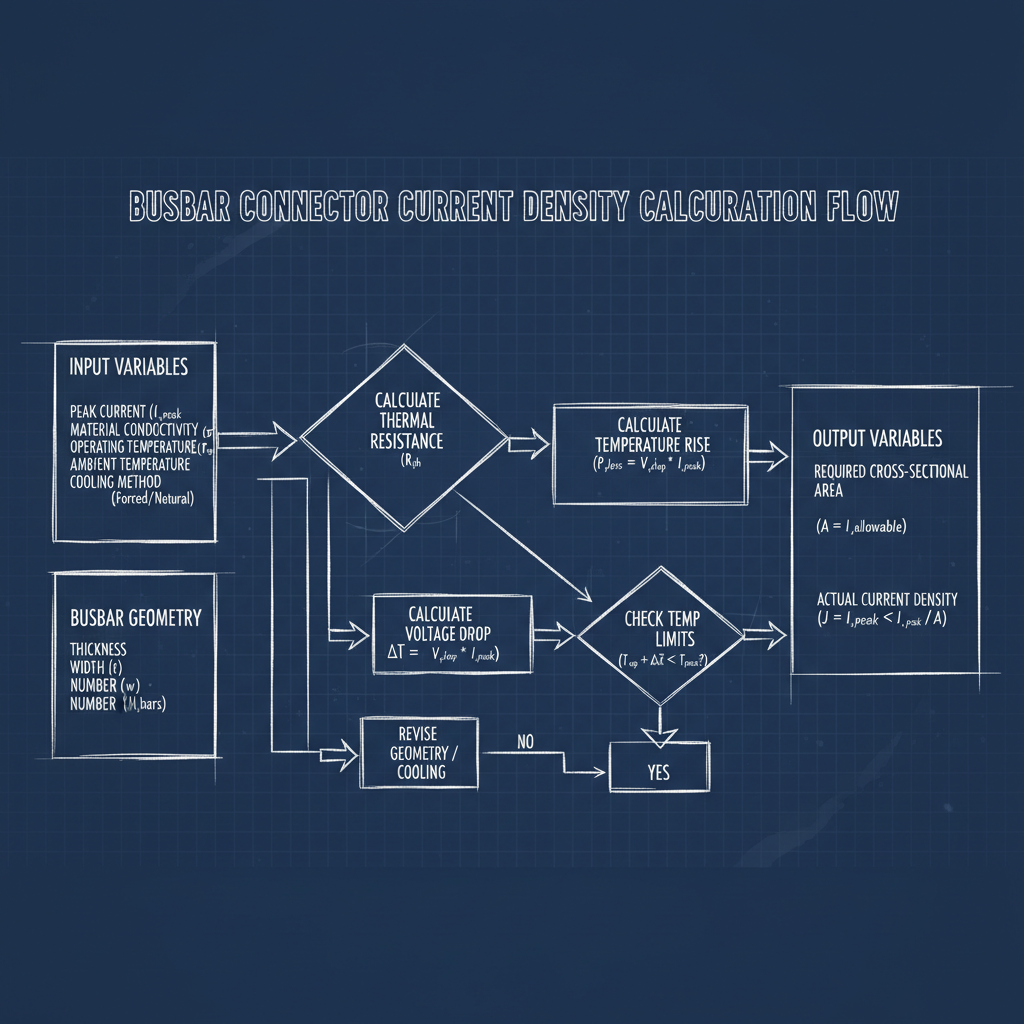

How to Calculate Current Density?

To calculate current density, you must divide the total peak operating current by the effective cross-sectional area.

Engineers often use generic sizing charts instead of calculating specific current densities for their unique panel environments. Ignoring the ambient panel temperature, the physical layout of the phase conductors, and the installation altitude significantly alters the actual current-carrying capacity of the copper or aluminum. To solve this, you must follow a strict step-by-step mathematical approach to establish your baseline conductor requirements before selecting any physical hardware.

What Formulas Should You Use?

You should use the standard IEC formula adjusting for continuous load, ambient temperature, and material conductivity.

Step 1: Identify the maximum continuous current. You must determine the absolute peak load the panel will handle, factoring in future facility expansion. For our calculation example, assume a peak continuous load of 2500A.

Step 2: Apply the derating factor for panel enclosures. Enclosed busbars cannot dissipate heat as effectively as open-air conductors. You must apply a derating factor, usually between 0.8 and 0.85, depending on the ingress protection rating of the enclosure and the presence of forced ventilation.

Step 3: Account for installation altitude. If your panel is installed above two thousand meters, the thinner air reduces natural convection cooling. You must apply an additional altitude derating multiplier of 0.95 for every thousand meters above the baseline.

Step 4: Calculate the baseline area using standard copper density limits. Industry best practices typically dictate a maximum current density of 1.5 to 2.0 Amps per square millimeter for high-grade copper.

Step 5: Execute the final math. If your peak load is 2500A and your target density is 1.6 Amps per square millimeter inside a ventilated enclosure, dividing 2500 by 1.6 yields a baseline requirement of 1562 square millimeters of pure copper cross-section.

How Do Temperature Limits Apply?

Temperature limits apply by dictating the maximum allowable temperature rise above the ambient environment, typically restricted to 65K.

Step 1: Measure the maximum ambient temperature inside the distribution panel. This is not the room temperature of the building. The internal panel temperature can easily reach forty-five degrees Celsius due to heat generated by adjacent circuit breakers and variable frequency drives.

Step 2: Subtract this internal ambient metric from the maximum operating temperature of the connector insulation. If your busbar supports components rated for one hundred and five degrees Celsius, and your internal ambient is forty-five degrees Celsius, your absolute maximum allowable temperature rise is sixty Kelvin.

Step 3: Adjust the cross-section to ensure the temperature rise stays strictly within the calculated margin. If your baseline calculation results in a theoretical temperature rise of seventy Kelvin, you must increase the cross-sectional area of the electrical busbar connectors by adding parallel bars until the thermal model drops safely below the sixty Kelvin threshold.

How to Select the Right Cross-Section?

You must match the calculated cross-section requirement with standard IEC or UL dimensional guidelines considering skin effect.

Choosing a thick, solid bar for alternating current often leads to highly inefficient material use and unexpected heating. The skin effect forces alternating current to travel along the outer surface of the conductor, leaving the center of a massive solid bar practically useless while the outer edges overheat. The solution is to opt for multiple thinner bars separated by calculated air gaps instead of one massive solid block.

Step 1: Compare your required mathematical area against standard flat bar dimensions. Standard commercial sizes include fifty by ten millimeters, eighty by ten millimeters, and one hundred by ten millimeters.

Step 2: Split the conductor into parallel bars if the requirement exceeds 1200A. For a calculated requirement of 1562 square millimeters, do not attempt to use a single massive bar. Instead, select two parallel eighty by ten millimeter bars per phase, which provides 1600 square millimeters of highly efficient surface area.

Step 3: Ensure a minimum cooling gap between parallel bars. You must leave a space exactly equal to the thickness of one bar between parallel conductors. If you are using ten millimeter thick bars, the air gap between them must be exactly ten millimeters to allow natural convection cooling to pull heat away from the inner surfaces.

Step 4: Verify the mechanical short-circuit withstand capacity. Ensure that your selected cross-section and phase spacing can physically withstand the electromagnetic repulsion forces generated during a short circuit event, which can bend undersized copper bars instantly.

Why Are Installation Practices Critical?

Proper mechanical execution prevents high resistance joints that can destroy perfectly sized electrical components.

A perfectly mathematically sized busbar will still fail catastrophically if the connection joint lacks adequate contact pressure. Loose connections increase micro-arcing and electrical resistance, generating localized extreme heat that melts insulation and triggers phase-to-phase faults. To guarantee safety and longevity, engineers must strictly follow busbar connector torque specifications and installation best practices throughout the entire mechanical assembly process.

What Are Exact Torque Specifications?

Exact torque specifications depend on the bolt grade and size, typically requiring 40 to 50 Nm for standard M10 hardware.

Step 1: Select high-tensile hardware for all joints. You must use bolts with a minimum specification of Grade 8.8 to ensure they can withstand the required clamping force without stretching, yielding, or snapping under pressure.

Step 2: Use calibrated digital torque wrenches for every single bolt on the panel. Manual tightening based on physical feel is entirely unacceptable in high current panels and guarantees uneven pressure distribution.

Step 3: Apply Belleville conical washers to maintain tension during thermal cycling. As the copper heats and expands during peak loads, and contracts during offline hours, these specialized washers act as mechanical springs to keep the joint tight.

Step 4: Follow a strict torque value checklist based on bolt size. Apply 20 to 25 Nm for M8 bolts, 40 to 50 Nm for M10 bolts, and 70 to 80 Nm for M12 bolts. Adhering to these busbar connector torque specifications and installation best practices is non-negotiable for system safety.

Step 5: Execute a cross-pattern tightening sequence. When securing a joint with four or more bolts, tighten them in a diagonal cross pattern to ensure the copper surfaces mate evenly without warping the edges of the connector.

What Are Common Installation Errors?

Common errors include failing to clean contact surfaces and reusing yielded tension washers.

Step 1: Always abrade and clean the copper contact surfaces before joining. Bare copper oxidizes rapidly, and this invisible oxide layer acts as a powerful electrical insulator. You must scuff the mating surfaces with an abrasive pad until shiny just minutes before final assembly.

Step 2: Apply a highly conductive joint compound immediately after cleaning. This specialized paste prevents rapid re-oxidation and fills microscopic voids in the metal surface, dramatically lowering the overall joint resistance.

Step 3: Calculate the correct overlap distance. The overlap length of two joined busbars must be at least equal to the width of the widest bar. If you are joining hundred millimeter wide bars, the overlap joint must be at least one hundred millimeters long.

Step 4: Never overlap painted, anodized, or insulated sections of the busbar. The connection must be pure metal-to-metal contact.

Step 5: Never reuse Belleville washers once they have been fully torqued and subjected to thermal cycling. They lose their spring constant over time and will fail to maintain pressure if reinstalled during routine maintenance. By avoiding these errors and following strict busbar connector torque specifications and installation best practices, you eliminate the most common points of failure.

Sizing electrical busbar connectors requires precise calculation of current density, strict adherence to temperature rise limits, and flawless execution of mechanical installation protocols. Skipping any of these mathematical steps or ignoring torque requirements compromises the entire distribution panel, leading to dangerous thermal failures and unplanned facility downtime.

As a leading busbar trunking manufacturer, ZHERUTONG provides engineered solutions designed for maximum reliability and safety in the most demanding industrial environments. If you are struggling with complex high current designs, harmonic load challenges, or need custom-sized connectors for your next major project, do not leave your power distribution to chance. Visit the ZHERUTONG website today, submit your panel specifications through our engineering contact form, and let our dedicated technical team calculate the perfect fit for your distribution system.
