How Do You Install 63A Busbar Trunking in Commercial Buildings Correctly?

Most search results for 63a busbar trunking drop engineers straight into a product page — a price, a datasheet, and a part number. What they actually need before ordering a single straight length is a clear picture of how the system goes together on-site: the sequence, the constraints, and the decisions that determine whether the installation passes inspection or gets called back for rework. At ZHERUTONG, we manufacture busbar trunking systems and support electrical engineers, M&E contractors, and procurement professionals through the full project cycle. This guide is written from that hands-on production and application standpoint. It covers why 63A is the dominant rating for commercial floor-level distribution, the step-by-step installation logic, grounding and IEC compliance requirements, and how the system compares to cable tray when the project brief leaves the choice open.

Why Is 63A the Standard Rating for Commercial Building Distribution?

63A sits at the practical sweet spot for commercial floor-level power distribution because it comfortably serves clustered lighting circuits, small power loads, and tap-off branch circuits across open-plan office floors, retail units, and hospitality spaces without oversizing conductors or enclosures.

To understand why this rating keeps appearing in specifications, consider the actual load profile of a typical commercial floor. LED driver circuits per branch run at 16–32A. Workstation clusters, AV equipment, and distributed socket circuits add up quickly across a zone. When you aggregate demand across a single distribution zone — say, a 400m² open-plan office section — the total typically lands in the 40–63A range. A 40A system technically fits, but 63A gives you headroom for load growth without replacing the entire run, which matters on any project where the tenant brief is likely to change.

Voltage drop is the other driver. In commercial buildings where distribution boards sit at the structural core and loads spread to the perimeter, a longer horizontal run at 40A starts to push the limits of acceptable voltage drop. Moving to 63A with appropriately sized copper conductors — typically 10–16mm² in a 4-pole configuration (3L + N + PE) depending on run length and ambient derating — keeps the drop within the 4% nominal voltage limit referenced in IEC 60364-5-52. The governing standard for LV busbar trunking assemblies is IEC 61439-6, and any system you specify should carry test reports to that standard, not just a CE declaration.

From the projects we supply at ZHERUTONG, the pattern is consistent: multi-floor office buildings, shopping centre fit-outs, hotel back-of-house corridors, and hospital ward wings all converge on 63A as the specification. A typical scenario we see is a four-floor office block where each floor uses a single 63A horizontal run feeding six tap-off points per side — twelve access points per floor, all served by one continuous busbar run from a single feed unit at the core.

How Should You Plan a 63A Busbar Trunking Route Before Installation Begins?

Route planning for 63A busbar trunking must be completed on paper — or in BIM — before a single bracket goes into the ceiling, because the position of the feed unit, the direction of tap-off outlets, and the location of expansion joints all depend on decisions that are nearly impossible to reverse once the run is fixed.

What Site Survey Data Do You Need First?

You need four things before drawing a route: confirmed available ceiling or riser void height, the structural grid spacing, the distance from the main distribution board to the first feed point, and the load schedule showing where each tap-off will land.

Ceiling void clearance is the first constraint to verify. Allow a minimum of 150mm above the busbar enclosure for maintenance access and heat dissipation. In suspended ceiling builds, confirm that tile grid lines align with planned bracket positions before finalising the run layout — a misalignment discovered after brackets are fixed adds hours of rework.

Structural grid spacing determines your bracket interval. For 63A systems, suspension brackets are typically positioned every 1.5–3m depending on manufacturer specification. Confirm actual beam or purlin positions against your planned run before placing the section order, because ordering to a round-number run length without accounting for real structural positions is a common and avoidable error.

Load schedule mapping is where most planning mistakes originate. Mark each tap-off outlet position on the drawing with its load in amps. This tells you whether the feed unit should be end-fed or centre-fed. Centre feeding halves the maximum current at any point along the run, which directly reduces voltage drop — on a 20m run with evenly distributed loads, centre feeding can cut voltage drop by roughly half compared to end feeding.

How Do You Calculate the Correct Run Length and Number of Sections?

Divide the total route length by the standard section length — commonly 1m, 2m, or 3m — then account for bends, T-junctions, and end caps. Ordering only straight lengths is the most common planning error we see from first-time specifiers.

For voltage drop calculation on a 63A copper system at 400V 3-phase, the drop per metre is approximately 0.6–0.9 mV/A/m depending on conductor cross-section. Multiply by the full load current and the run length, and verify the result stays within 4% of nominal voltage. For thermal expansion, any run exceeding 20m in a steel enclosure should incorporate at least one expansion joint. Steel expands at roughly 12mm per 10m per 10°C temperature rise — a 30m run in a building where ceiling temperatures swing 20°C between seasons will move nearly 7mm, which is enough to stress a rigid joint connection if no allowance is made.

What Are the Step-by-Step Installation Procedures for 63A Busbar Trunking?

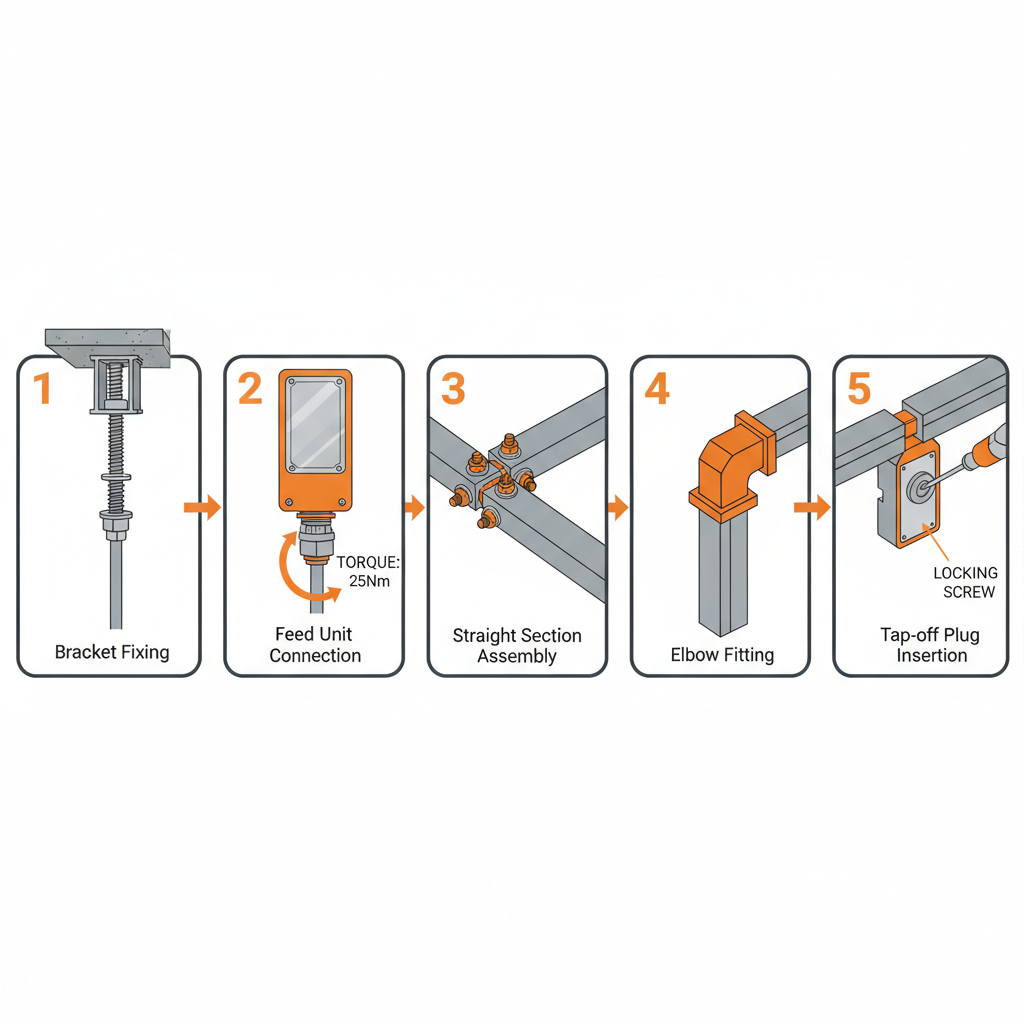

Installing 63A busbar trunking follows a fixed sequence — brackets first, feed unit second, straight sections third, tap-off plugs last — and deviating from this order creates alignment problems that are difficult to correct without dismantling the entire run.

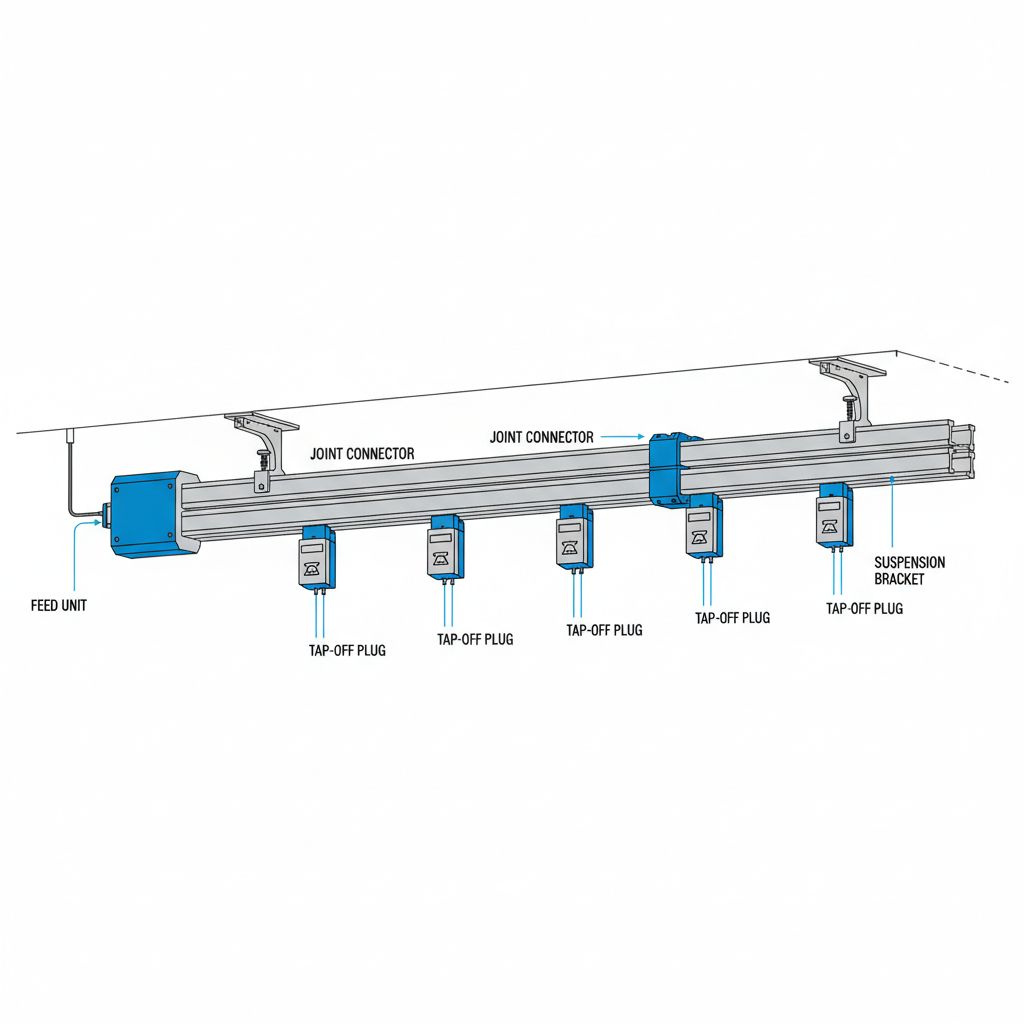

Step 1 is bracket installation. Fix suspension brackets or wall brackets at planned intervals. For ceiling suspension, use threaded rod M8 or M10 with anti-vibration washers. Set brackets level using a laser level before proceeding — even a 2mm/m deviation compounds over a 20m run and makes section alignment increasingly difficult toward the end of the route. For IP rating, standard commercial indoor installations use IP40–IP55 enclosures. If the route passes through a plant room or any area with water ingress risk, IP55 is the minimum.

Step 2 is feed unit positioning and connection. The feed unit connects the 63A busbar trunking run to the upstream distribution board via cable. At 63A, the incoming supply is typically 16mm² or 25mm² copper cable. Ensure correct cable gland size and IP continuity at the entry point. Before proceeding, mark L1/L2/L3/N on the feed unit — phase sequence errors at the feed unit propagate to every tap-off point on the run and are not always immediately obvious until load is connected.

Step 3 is straight section assembly. Click or bolt straight sections into brackets sequentially from the feed unit outward. Joint connectors between sections must be fully seated and torqued to manufacturer specification — typically 10–15 Nm for 63A joint bolts. Install joint covers immediately after each section connection. At ZHERUTONG, our production testing includes contact resistance measurement at every joint assembly. The field failures we have traced almost always originate from under-torqued joints or incorrectly seated tap-off plugs, not from the conductor material itself.

Step 4 covers bends, elbows, and flexible joints. Use factory-made elbows for 90° changes in direction — field-fabricated bends are not permitted under IEC 61439-6. Flexible joints are required where the busbar crosses a building expansion joint or seismic isolation point, and also where precise alignment between two fixed structures cannot be guaranteed during installation.

Step 5 is tap-off plug installation. Most 63A systems allow tap-off plugs to be installed live — this is one of the key operational advantages over rewiring with cable, and it means future reconfigurations do not require a shutdown of the full run. Most 4-pole tap-off plugs are keyed to prevent incorrect insertion, but always verify phase indicator LEDs illuminate in the correct sequence before connecting downstream load. Torque the tap-off plug locking screw to the specified value. Under-torqued plugs are the most common cause of contact heating at 63A loading.

What Are the Grounding and IEC Compliance Requirements You Cannot Skip?

For 63A busbar trunking in commercial buildings, the steel enclosure must serve as a continuous protective earth conductor throughout the run, and this earth continuity must be verified by measurement before the system is energised — it is not sufficient to assume the mechanical joint creates adequate electrical continuity.

IEC 61439-6 is the specific standard governing busbar trunking systems, distinct from IEC 61439-1 and IEC 61439-2 which cover switchgear assemblies. It defines verification tests for temperature rise, short-circuit withstand, and dielectric properties. When procuring 63A busbar trunking, always request the test report to IEC 61439-6 specifically.

For earth continuity, the steel housing acts as the PE conductor in most 63A systems. At each joint, housing-to-housing earth bonding must be verified with a low-resistance ohmmeter. The target is less than 0.1Ω per joint. A dedicated earth bonding strap at the feed unit connects the busbar PE to the building earth. For conductor sizing, the minimum PE cross-section for a 63A phase conductor is 16mm² copper equivalent, per IEC 60364-5-54.

IP rating selection follows a straightforward logic: IP40 for open-plan offices and clean ceiling voids; IP55 for kitchens, plant rooms, car park decks, and external covered walkways. Mixing IP ratings within a single run is not permitted — the entire run takes the IP rating of its lowest-rated component.

Short-circuit withstand is the final compliance check that is frequently overlooked at the procurement stage. 63A systems are typically rated for 1kA to 10kA short-circuit withstand over one second. Confirm the project's prospective short-circuit current at the feed point does not exceed the busbar system's rated value. This check is included in our ZHERUTONG installation commissioning checklist and should be a standard step on any project.

Is 63A Busbar Trunking Actually Better Than Cable Tray for Power Distribution?

63A busbar trunking outperforms cable tray distribution in commercial buildings wherever loads are distributed at regular intervals along a run — but cable tray remains the better choice for point-to-point home runs where no intermediate tap-offs are needed.

When comparing 63a busbar trunking vs cable tray power distribution, the decision usually comes down to load geometry. Here is how the two approaches compare across the criteria that matter most on a commercial fit-out:

Busbar trunking wins clearly in open-plan office fit-outs with regularly spaced workstation clusters, retail units with flexible merchandising zones, and hotel corridors with room entry points at regular intervals. The 63a busbar trunking vs cable tray power distribution comparison shifts in cable tray's favour for dedicated point-to-point feeder runs — for example, a distribution board to an AHU — or routes where tap-off spacing is highly irregular and exceeds 6m between access points. Projects with very tight budget constraints at low load density may also find cable tray more appropriate at the initial cost stage, though the lifecycle modification cost often reverses that calculation within a few years of occupancy changes.

At ZHERUTONG, we supply both busbar trunking and cable management products. That position means this comparison reflects genuine application experience rather than a single-product bias.

---

FAQ

How many tap-off outlets does a standard 63A busbar trunking section have?

Most 3-metre straight sections for 63A busbar trunking carry 3 tap-off outlets per side in a double-sided configuration, giving 6 access points per section. Single-sided configurations are also available for wall-mounted or ceiling-edge runs where access is only required from one direction.

Can 63A busbar trunking be installed vertically in a riser shaft?

Yes, but vertical runs require additional support clamps at maximum 3m intervals to carry the self-weight of the sections. The feed unit must be positioned at the bottom of the riser to avoid gravity-induced joint stress, and joint torque verification is especially important in vertical installations where vibration from building services can gradually loosen connections.

What conductor material should I specify — copper or aluminium?

For 63A commercial building applications, copper conductors are the standard choice. They offer lower resistance per cross-section, better contact reliability at tap-off points, and are easier to terminate. Aluminium becomes more relevant at higher current ratings — 160A and above — where weight saving across long runs becomes significant enough to justify the additional termination care that aluminium requires.

Does the busbar enclosure need separate fire stopping where it passes through a compartment wall?

Yes. Any busbar trunking penetration through a fire-rated wall or floor requires an approved intumescent fire stopping collar or sleeve around the enclosure. The busbar system itself does not provide fire compartmentation — this must be addressed as a separate installation step with a certified fire stopping product, and it should be identified in the project's fire strategy documentation before installation begins.

What is the maximum ambient temperature for a 63A busbar trunking installation?

Most 63A busbar trunking systems are rated for continuous operation at up to 40°C ambient. Above this temperature, a derating factor must be applied to the current-carrying capacity. At 50°C ambient, a typical derating of 10–15% reduces the effective rating to approximately 54–57A continuous — which may require the system to be upsized or the load schedule to be reviewed.

---

If you are working through the design or procurement stage of a commercial building project involving 63A busbar trunking — whether you need to verify a run layout, confirm compliance with IEC 61439-6, or source a custom section configuration — we are ready to support you directly. At ZHERUTONG, we work with electrical engineers, M&E contractors, and OEM clients on projects ranging from single-floor fit-outs to multi-building campus distributions. Send your project drawings, load schedules, or specification requirements to rtdq@rtbusway.com and our technical team will respond with a detailed proposal, sample availability, or a customised quote.
