A project specification arrives on your desk calling for "fire resistant compact busbar trunking, IEC 60331 compliant" — and the real question is not whether to comply, but how to verify that a specific product genuinely does. That distinction matters more than it might initially appear. The market contains products that carry fire-resistant labeling based on material datasheets alone, and products that have been subjected to a live furnace test with voltage applied throughout. These are not the same thing, and building authorities and fire engineers increasingly know the difference.

IEC 60331 occupies a different category from the more commonly cited IEC 61439-6. The latter governs the general assembly performance of busbar trunking systems under normal operating conditions — temperature rise, short-circuit withstand, dielectric strength at ambient. IEC 60331 is a circuit integrity standard: it asks whether the system continues to carry current and maintain insulation resistance while physically burning. That is a fundamentally harder requirement, and it demands a fundamentally different product architecture.

At ZHERUTONG, we manufacture fire resistant compact busbar trunking to F30, F60, and F90 ratings with phlogopite mica insulation, and we hold third-party furnace test documentation for each configuration. This article walks through exactly what that means — in material terms, in test protocol terms, and in the verification questions engineers and procurement specialists should be asking of any supplier, including us.

What Does IEC 60331 Actually Test?

IEC 60331 is a circuit integrity standard, not a material fire-resistance standard — it tests whether an electrical circuit continues to carry current and maintain insulation resistance while physically exposed to a sustained flame at temperatures defined by the ISO 834-1 time-temperature curve, typically reaching 750°C within the first 30 minutes and approaching 1,000°C by 60 minutes of continuous exposure.

Three standards are routinely confused on product datasheets, and the confusion carries real risk. IEC 60332 tests flame propagation — whether a busbar or cable spreads fire along its length. A product can pass IEC 60332 (it does not spread fire) while failing IEC 60331 entirely (it loses circuit function within minutes of flame contact). IEC 61439-6 governs assembly performance at ambient conditions. Neither of these is a substitute for IEC 60331 when emergency circuit survivability is the requirement.

The ISO 834-1 time-temperature curve provides the thermal benchmark. At 5 minutes of fire exposure, furnace temperature reaches approximately 576°C. At 30 minutes, it is around 842°C. At 60 minutes, the curve reaches approximately 945°C. These are not worst-case estimates — they are the calibrated test conditions the assembly must survive while carrying rated voltage.

The performance classes most relevant to busbar trunking are F30 (30 minutes of circuit integrity), F60 (60 minutes), and F90 (90 minutes). Emergency power circuits in hospitals, high-rise evacuation systems, and data center UPS feeds typically require F60 or F90 as a minimum under most jurisdictional building codes. F30 is generally insufficient for life-safety applications.

What the test actually measures simultaneously: voltage continuity — the circuit must not open-circuit or short-circuit during the entire rated duration — and insulation resistance between phases and between phase and enclosure, which must remain above a defined threshold throughout. Some specifications set this threshold at 1 MΩ; others accept 100 kΩ as a minimum for certain circuit types. Both measurements must hold concurrently without interruption.

One point that is frequently misunderstood: IEC 60331 certification applies to the complete assembly as tested — conductor, insulation system, and enclosure together. A test report on components in isolation does not constitute compliance. The whole system must enter the furnace and emerge with its circuit function intact.

---

Why Is Phlogopite Mica Tape the Core Material?

Phlogopite mica tape is the only insulation material that simultaneously maintains dielectric strength and structural cohesion above 900°C — the threshold at which every polymer-based alternative, including PTFE and silicone rubber, has already lost its insulating function — making it the non-negotiable core of any IEC 60331-compliant compact busbar trunking design.

The distinction between mica types is not a minor technical footnote. Phlogopite, or amber mica, retains structural integrity up to approximately 1,000°C and is the correct material for fire-rated busbar applications. Muscovite, or white mica, has a practical ceiling of around 700°C — adequate for lower-grade insulation duties but insufficient when the ISO 834-1 curve is the test condition. When reading a supplier's datasheet, the mica type should be explicitly stated. If it is not, that is itself a procurement risk signal.

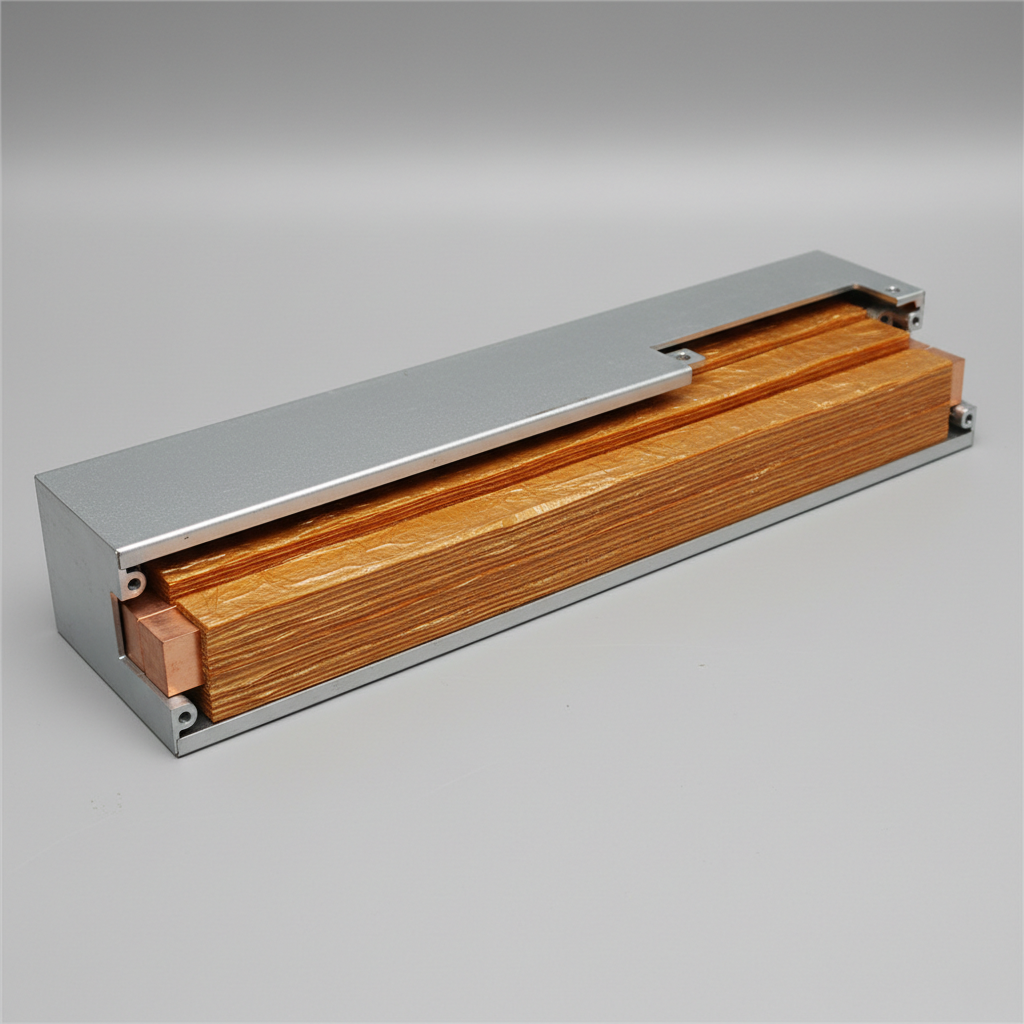

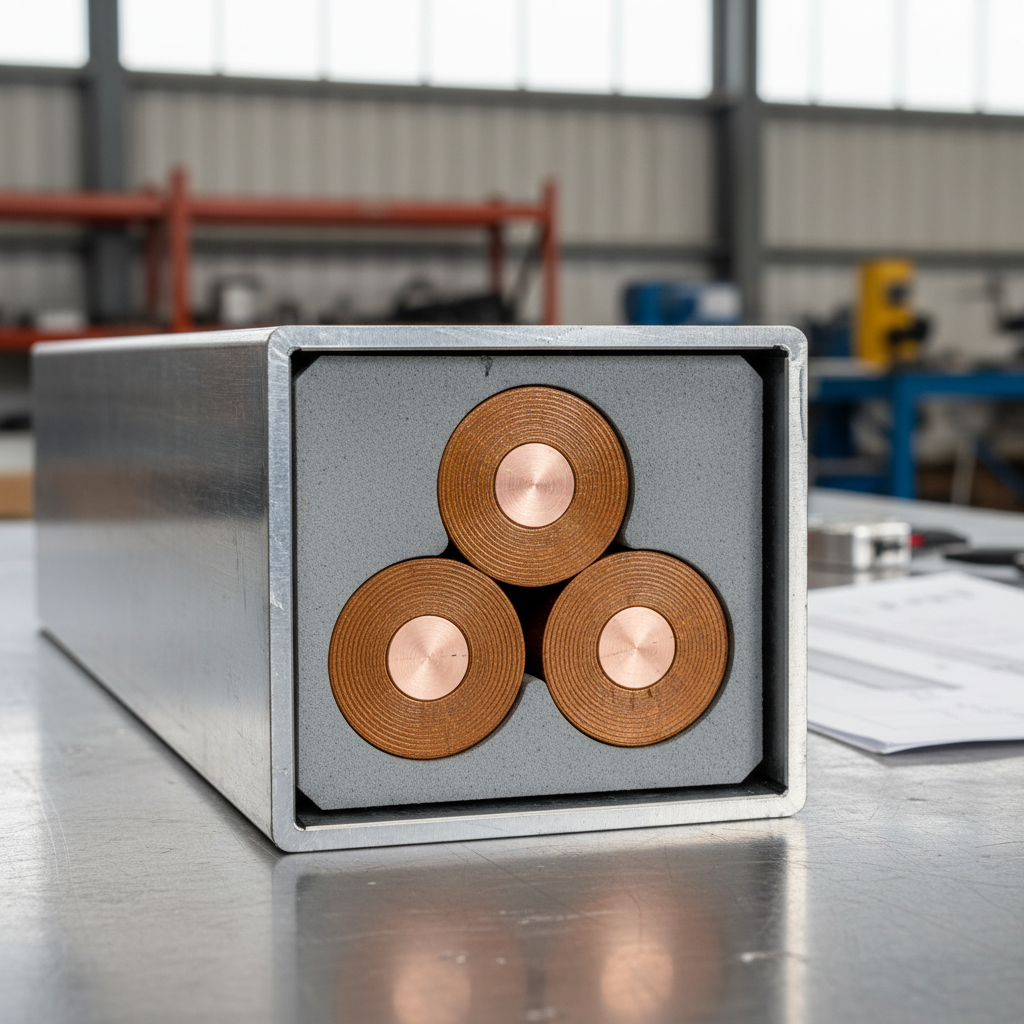

The tape construction consists of mica paper bonded to a glass-fiber backing with a silicone binder, formed into a tape typically 0.13 mm to 0.20 mm thick per individual layer. What matters in practice is how many layers are applied and at what overlap ratio.

The quantitative relationship between layer configuration and fire rating class is the detail most competitor content omits entirely:

These figures represent design targets, not guaranteed outcomes. Actual certification is determined by furnace testing, not by calculation from layer count alone. A design that meets the thickness target on paper can still fail if tape tension during winding is inconsistent, if the silicone binder cure temperature was not controlled correctly during production, or if layer adhesion is insufficient to prevent delamination under thermal shock.

At ZHERUTONG, we have observed during internal validation testing that units wound with insufficient tape tension develop micro-gaps between layers that are invisible to visual inspection but create localized dielectric failure points well before the rated fire duration expires. This is why production QC on the winding process — not just the material specification — determines whether a product genuinely achieves its rated class.

The overlap ratio deserves equal attention. A 50% overlap means each successive wrap covers half the width of the previous layer, creating a double-thickness coverage across the entire conductor surface. Reducing this to 40% to save material introduces periodic single-thickness zones that become thermal weak points. The rated fire duration is only as long as the weakest point in the insulation system.

The intumescent coating on the enclosure housing serves as the second line of defense, not the primary insulation. When exposed to temperatures in the 150°C–200°C range, the coating undergoes a chemical reaction and expands to form a dense char layer, protecting the mica insulation beneath from direct flame impingement. This is a meaningful contribution to the system's fire performance — but it cannot compensate for an inadequate mica specification. If the mica layers are insufficient, the intumescent char merely delays the failure rather than preventing it.

How Does the IEC 60331 Test Protocol Work in Practice?

The IEC 60331 test subjects a representative busbar trunking assembly to a calibrated gas-burner flame following the ISO 834-1 time-temperature curve while the circuit carries its rated voltage, and the assembly must sustain both electrical continuity and insulation resistance above the specified threshold throughout the entire rated duration without a single interruption.

The test specimen requirements are stricter than many procurement teams realize. The specimen must represent the actual product configuration being sold — same conductor cross-section, same mica tape specification and layer count, same enclosure material and coating. A test report issued for a 630A unit does not automatically certify the same physical product at 2,500A. Thermal load affects mica performance, and a unit carrying substantially higher current generates more internal heat during fire exposure, placing greater demand on the insulation system. Engineers should request the test report that corresponds to their project's actual rated current, not the nearest lower value.

Installation orientation is another variable the test protocol captures. The furnace test is conducted in a defined orientation — horizontal or vertical — and the certification strictly applies to that tested orientation. Heat rises differently in a vertical installation, which affects how the char layer forms on the intumescent coating and how heat distributes across the mica layers. If a project requires installation in an orientation different from the tested configuration, the manufacturer must be consulted.

Three measurements are recorded simultaneously throughout the test duration: thermocouple readings confirming the furnace temperature follows the ISO 834-1 curve within a tolerance of ±15°C; current continuity monitoring confirming the circuit has not opened or shorted; and insulation resistance measurements between phases and between each phase and the enclosure, logged at defined intervals. All three must remain within specification for the full rated duration.

A valid test report must contain the specimen description with explicit material callouts (mica tape type, layer count, enclosure coating specification), the furnace temperature log plotted against the ISO 834-1 reference curve, the insulation resistance log at defined measurement intervals, a clear pass/fail determination, and the accredited laboratory's stamp and reference number.

Red flags in non-compliant test reports include: missing insulation resistance data (only continuity data is shown), specimens tested at lower current ratings than the product being sold, test reports from laboratories without recognized accreditation, and — critically — reports that cite IEC 60332 instead of IEC 60331. This last substitution appears more often than it should in supplier documentation.

ZHERUTONG submits products for third-party furnace testing and can provide full test reports to engineers and procurement teams upon project inquiry.

---

Which Parameters Should Engineers Verify Before Approval?

Before approving any fire resistant compact busbar trunking for an emergency power circuit, engineers should verify six specific parameters directly against the test report and datasheet: fire resistance class, tested current rating, mica tape type and layer count, enclosure coating specification, IP protection rating under fire conditions, and the accreditation status of the testing laboratory.

Working through these in order:

The fire resistance class must match the circuit requirement defined by the applicable building code. Emergency lighting feeders typically require F60 as a minimum in most jurisdictions. Fire-fighting service feeders — sprinkler pumps, smoke extraction fans — and evacuation system power for emergency elevators and public address systems commonly require F90. Confirming this against the project's fire engineering report before specifying is not optional.

The tested current rating must be at or above the installed unit's rated current. As noted above, a test report for a lower current rating does not cover higher-load configurations.

The mica tape specification should appear explicitly on the datasheet: phlogopite or muscovite, number of layers, nominal thickness per layer. Any supplier unwilling to disclose this in writing is presenting a verification gap that cannot be resolved by reviewing a certificate alone.

The intumescent coating should have a documented activation temperature (typically 150°C–200°C) and a char expansion ratio of at least 10:1. These figures should appear in the fire-stopping material data sheet, which is a separate document from the product datasheet.

IP rating under fire conditions requires specific attention. IP54 is a standard ambient rating; the question is whether the enclosure maintains its sealing integrity during and after fire exposure. Some enclosure designs warp under sustained heat and lose their IP rating before the rated fire duration expires, which can introduce moisture or extinguishing agent into the assembly. This should be addressed explicitly in the test report or supporting documentation.

Conductor material and purity affect performance under prolonged elevated temperature. High-purity copper (≥99.9% Cu) maintains conductivity more consistently under heat than recycled-content copper alloys. Tin-plating at joints prevents oxidation-induced resistance increase during sustained heat exposure — a detail that matters particularly for F90-rated installations where the assembly must remain functional through a full 90 minutes of furnace conditions.

---

How Does Emergency Circuit Compliance Shape the Final Selection?

Emergency power circuit compliance requirements — driven by local building codes, IEC 60364-5-56, and project-specific fire engineering reports — ultimately determine which fire resistance class is mandatory, which in turn defines the minimum mica insulation specification and test evidence required before a fire resistant compact busbar trunking can be approved for installation.

IEC 60364-5-56 establishes the framework for electrical installations supplying safety services. The standard requires that circuits supplying safety services maintain circuit integrity for the duration needed to support safe evacuation or fire-fighting operations. Local codes then translate this principle into specific F-class requirements for specific circuit types. The compact busbar trunking fire rating emergency power circuit compliance chain therefore runs from the project's fire engineering report through the applicable local code to IEC 60364-5-56 and ultimately to the IEC 60331 test evidence for the specific product configuration being installed.

The three circuit categories most commonly requiring IEC 60331-compliant busbar trunking are emergency lighting feeders, fire-fighting service feeders (sprinkler pumps, smoke extraction fans), and evacuation system power (emergency elevators, public address systems). Each may carry a different minimum F-class requirement within the same project, depending on the jurisdiction and the fire engineer's determination.

The documentation chain that procurement teams must assemble for project approval is more extensive than a single certificate: the full IEC 60331 test report for the specific configuration, the product datasheet with explicit mica specification, confirmation of the testing laboratory's accreditation status, and an installation method statement confirming that the installation orientation on site matches the tested orientation in the report.

When a project specifies a non-standard current rating or a custom enclosure configuration, the manufacturer must either hold an existing test report covering that exact configuration or conduct a new furnace test. This is a question to raise with any supplier at the request-for-quotation stage. A supplier who cannot answer it directly — either by producing the relevant test report or by acknowledging that new testing would be required — is not in a position to provide a verified compliant product for that specific application.

---

What Does This Mean for Projects Going Forward?

As building codes globally tighten around emergency circuit survivability — particularly in healthcare facilities, transport hubs, and mixed-use high-rise developments — the gap between a product that is described as "fire resistant" in marketing language and one that holds a valid IEC 60331 furnace test report for the specific configuration being purchased is becoming a project liability. The distinction that was once treated as a technical detail is now the difference between a product that passes specification review and one that does not.

At ZHERUTONG, we produce fire resistant compact busbar trunking with phlogopite mica insulation to F30, F60, and F90 ratings across current ranges from 100A to 6,300A. We hold third-party test documentation for each configuration, and we can provide full test reports, mica tape specification sheets, and intumescent coating material data sheets to engineers and procurement specialists evaluating our products for specific projects.

If you are working on a project that requires compact busbar trunking fire rating emergency power circuit compliance and need configuration recommendations, test report documentation, or evaluation samples, send your project specifications, load schedules, or layout drawings directly to rtdq@rtbusway.com. We will provide a documented technical response matched to your project's specific requirements.

---

FAQ

What is the difference between IEC 60331 and IEC 60332 for busbar trunking?

IEC 60331 tests whether a circuit continues to function electrically during fire exposure — voltage must remain present and insulation resistance must hold throughout the rated duration. IEC 60332 tests whether a cable or busbar propagates flame along its length. A product can pass IEC 60332 (it does not spread fire) while failing IEC 60331 (it loses circuit integrity under sustained heat). Emergency power circuits require IEC 60331 compliance specifically, and the two standards are not interchangeable.

Does a single IEC 60331 test report cover all current ratings of a fire resistant compact busbar trunking product?

No. The test report is valid for the specific configuration tested, including the current rating, conductor cross-section, and mica tape specification. A report issued for an 800A unit does not certify the same product at 2,000A. Engineers should request the test report that matches their project's rated current, and any supplier who presents a lower-rated test report as covering a higher-rated product is making a claim the standard does not support.

How many layers of phlogopite mica tape are needed for F90 certification?

For most compact busbar trunking configurations above 1,000A, achieving F90 certification requires a minimum of three mica tape layers with a 50%–55% overlap ratio, yielding an effective insulation thickness of approximately 6–7 mm. The exact specification depends on the current rating and enclosure design, and must be validated through furnace testing rather than calculated from layer count alone.

Can fire resistant compact busbar trunking be installed in any orientation and retain its IEC 60331 rating?

Not automatically. The IEC 60331 test is conducted in a defined orientation — horizontal or vertical — and the certification applies strictly to that tested orientation. Heat distribution and char layer formation differ between orientations, which affects fire performance. If a project requires installation in a different orientation from the tested configuration, the manufacturer should be consulted and may need to provide additional test evidence covering the required orientation.

What documentation should a procurement team request to verify IEC 60331 compliance?

Request the full third-party furnace test report — not a summary certificate — the product datasheet specifying mica tape type and layer count explicitly, the intumescent coating material data sheet with activation temperature and expansion ratio, and confirmation of the accreditation status of the testing laboratory. If any of these documents are unavailable or contain gaps such as missing insulation resistance data or specimens tested at lower ratings than the product being sold, the compliance claim cannot be verified and the risk sits with the project, not the supplier.
