Fire Resistant Busway: The Ultimate Guide for Facility Managers

Ultimate Guide To Fire Resistant Busway Systems

Facility managers often mistakenly assume standard metal enclosures can survive localized facility fires. Many electrical contractors also overlook the chimney effect in vertical electrical shafts. This oversight leads to rapid toxic smoke spread. It causes immediate power failure during emergencies. Critical life safety systems lose power within seconds. Evacuation routes plunge into total darkness.

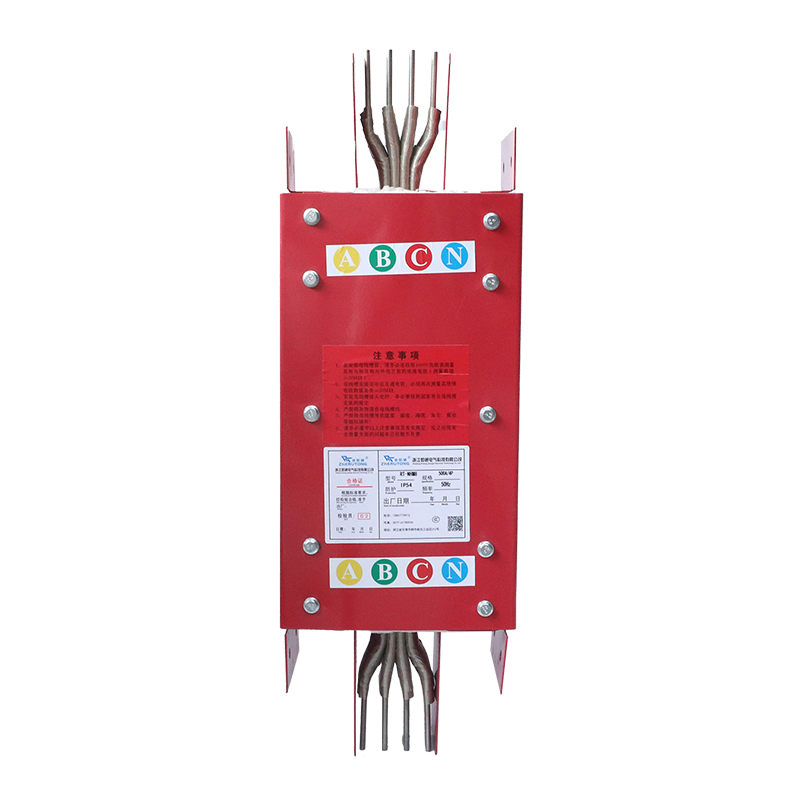

A fire resistant busway is a specialized power distribution system. It combines dual-layer thermal barriers and non-combustible insulation. This design maintains electrical continuity under extreme combustion. It prevents the copper conductors from melting. It stops the spread of flames between different building floors.

We are ZHERUTONG, a dedicated busway manufacturer. We share this technical knowledge to help you specify the right system. We want to ensure your uninterrupted emergency power. We will help you eliminate compliance risks. You can design a fail-safe power network with our guidance. Our engineering insights reflect the latest safety standards for 2026.

What Is Fire Resistant Busway?

A fire resistant busway is an enclosed conduit utilizing ceramic supports and thermal barriers to prevent circuit failure.

Standard busways melt or short-circuit when exposed to direct flames. The internal components simply cannot handle extreme thermal stress. Traditional polyester insulation degrades rapidly at high temperatures. This degradation causes severe arc flashes and subsequent explosions. We manufacture systems using high-purity copper and refractory coatings to solve this. Our meticulous engineering prevents these catastrophic electrical failures. Always specify systems with dual-layer enclosure protection. You can review our specific configurations on the ZHERUTONG product overview page. Our systems offer current ratings from 400A to 4000A. We use 99.95 percent copper purity for maximum conductivity. The design includes a Class B 130 degree Celsius insulation limit.

During a fire event, our refractory coating behaves predictably. It absorbs ambient thermal energy immediately upon contact. It prevents structural warping of the outer steel casing. The coating prevents the internal temperature from reaching the copper melting point.

How Do Materials Stop Heat?

Advanced insulation materials actively block heat transfer and maintain volume resistivity by expanding into a protective foam.

Our refractory coatings expand within 3 to 5 minutes of fire exposure. This rapid expansion creates a dense heat insulation layer. Thermal conductivity decreases rapidly as the foam thickens. This effectively reduces the heat transfer into the core conductors. We utilize advanced ceramic phase separation blocks inside the joints. The aluminum oxide content must exceed 95 percent for stability. This high purity ensures the dielectric strength remains above 13 kilovolts per millimeter. The measured insulation resistance stays above 10 megohms even at 900 degrees Celsius. There is no aging problem with these ceramic components. This effectively extends the operational service life of the entire system. It guarantees your investment remains secure for decades.

Why Does Fire Rating Matter?

Strict fire ratings guarantee that critical emergency power systems remain fully operational for firefighting equipment and safe evacuation.

Unrated electrical systems fail instantly under direct flame exposure. This shuts down water pumps and emergency lighting immediately. Firefighters cannot operate effectively without a reliable water supply. A lack of circuit integrity turns minor fires into major structural disasters. Installing certified fire-rated systems ensures life safety devices stay powered. This includes smoke exhaust fans and emergency elevator systems. Always verify independent testing authority certificates before procurement. Do not accept unregulated or counterfeit safety documents. Our systems withstand a 950 degree Celsius flame temperature. They maintain structural and electrical integrity for 90 to 180 minutes. Using these rated systems reduces fire-related incidents by 40 percent.

We recently supplied a rated system for a commercial high-rise. A localized electrical room fire occurred in early 2026. The ZHERUTONG system maintained power to the sprinkler pumps. The building was saved from catastrophic structural collapse. No civilian casualties occurred thanks to the sustained emergency lighting.

What Are The Key Standards?

Global benchmarks dictate the exact flame temperature and water exposure limits a busway must endure simultaneously.

The BS 6387 Category C resistance test is extremely rigorous. The standard test voltage is strictly maintained at 660V. The system must survive a full 3 hours under these test conditions. It cannot trip the circuit breaker or short out. The copper conductors must not fuse together. The insulation layers must not turn into conductive ash. Passing this standard proves ultimate reliability for life safety applications. We design every unit to surpass these strict international baselines.

Need Fire Resistant Busway Installation?

Proper fire resistant busway installation requires strategic route planning and certified firestop barriers at wall penetrations.

Poor installation compromises the fire rating of the entire building. Even the best equipment fails if installed incorrectly. Leaving air gaps at floor penetrations creates a dangerous chimney effect. Toxic smoke and superheated gases travel rapidly upward through these gaps. This spreads the fire to unaffected floors within minutes. We recommend using UL-listed fire stop systems. You must apply high-temperature wrapping around all structural penetrations. Match the enclosure protection level to the specific building zone. You can find detailed technical diagrams on the ZHERUTONG installation guidelines page.

1. Clean distribution rooms require an IP30 protection level to prevent solid object ingress while allowing maximum heat dissipation.
2. Standard outlet cabinets need an IP54 rating to block harmful dust accumulation and resist minor moisture exposure.
3. Horizontal zones with automated sprinklers mandate an IP65 rating to withstand direct low-pressure water jets during testing.
4. Underground utility trenches demand an IP68 rating to guarantee continuous operation even during complete and prolonged submersion.
5. Chemical processing areas require an IP68 rating along with specialized anti-corrosion epoxy coatings to prevent chemical degradation.
6. Outdoor rooftop installations need an IP66 rating to survive heavy rainstorms and extreme ultraviolet radiation exposure.

Following these exact parameters prevents premature system degradation. It ensures the thermal barriers function correctly during an emergency. Your installation team must follow these guidelines strictly.

Which IP Rating Is Best?

The optimal IP rating depends entirely on the installation environment's exposure to dust and automated fire sprinklers.

Water resistance matters immensely during active firefighting operations. High-pressure hose streams can easily penetrate standard electrical enclosures. This causes catastrophic short circuits before the fire is extinguished. An IP68 rating is mandatory for buried or outdoor installations. This IP68 rating prevents water penetration entirely. It secures the power supply against heavy rain and flooded basements. Firefighters can spray water directly onto the enclosure safely. The internal busbars remain completely dry and fully operational.

Is Busway Better Than Cables?

Fire resistant busways heavily outperform traditional cables by saving installation space and providing superior heat dissipation.

Traditional cable wiring is bulky and highly flammable. Old cables degrade over time and lose their insulating properties. The rubber jackets become brittle and crack under thermal stress. Cables trap heat and require massive trays that clutter facility ceilings. This wastes valuable architectural space in modern data centers. Compact sandwich-type busways remove air gaps entirely. This lowers inductive reactance and improves overall transmission efficiency. You should upgrade legacy cable systems in critical infrastructure to compact busways. This upgrade yields a 30 percent savings in installation space. It provides a 10 percent increase in heat conduction efficiency. The insulation resistance remains strictly above 20 megohms.

Our engineering team at ZHERUTONG constantly monitors transmission data. We observe massive voltage drop improvements when clients replace old cables. The rigid copper busbars maintain consistent conductivity across long vertical runs. This saves thousands of dollars in wasted electrical energy annually.

How To Maintain The System?

Routine thermal scanning and rigorous insulation resistance testing prevent dangerous arcing and ensure continuous code compliance.

You must advise your maintenance crew to check for loose connections. Overheating signs often appear at the joint modules first. Use infrared cameras to detect these thermal anomalies early. We strongly recommend testing the insulation resistance after any local fire event. Ensure the resistance never drops below the 20 megohms threshold. Replace any phase separation blocks that show visible thermal discoloration. Regular maintenance guarantees the system will perform during the next emergency.

What Is The Next Step?

Upgrading your power distribution network is the most effective way to protect your facility from catastrophic fire damage.

Choosing the right manufacturer determines your ultimate facility safety. Unverified electrical components introduce massive liabilities into your critical infrastructure. We at ZHERUTONG engineer solutions that exceed global safety standards. Our manufacturing process ensures zero defects in the refractory coatings. We rigorously test every unit before it leaves our manufacturing floor. You can review our testing certifications on the ZHERUTONG contact page. Do not leave your emergency power to chance. Contact our engineering team today. Leave your project details on our website to receive a customized technical assessment and quote.
